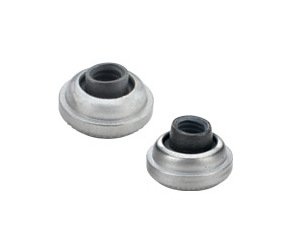

The Unified Self-Clinching Floating Receptacle Nuts - F10 Series are precision-engineered for easy installation and secure fastening in metal sheets. These nuts feature a thread size of .138-32 (#6-32) and are made of heat-treated carbon steel with a zinc-plated finish for corrosion resistance. With dimensions meeting ANSI standards and compatibility with sheets of up to .040 in thickness, these nuts provide reliable performance in a wide range of applications.

Product Specifications

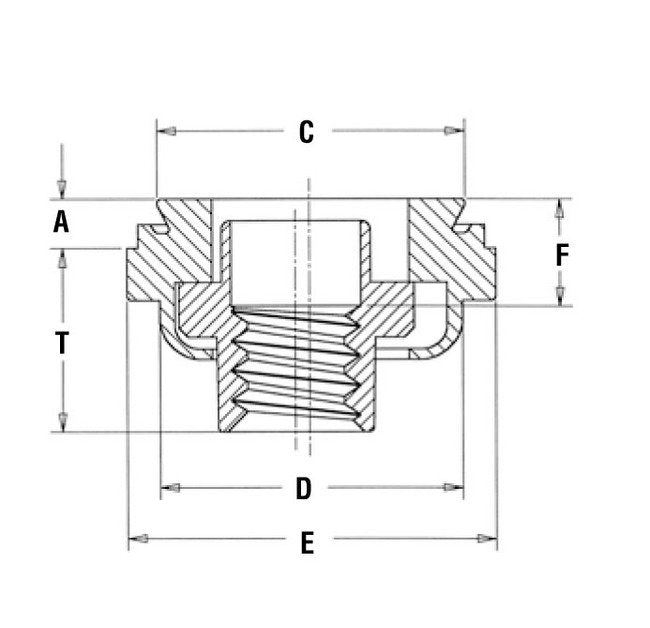

Specifications A Shank Max

0.038 in

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications C Max

.327 in

Specifications D Max

.330 in

Specifications E Max

.390 in

Specifications Finish

Zinc plated per ASTM B633, SC1 (5Âµm), Type III, colorless

Specifications For Use In Sheet Hardness

HRB 70 or Less (Hardness Rockwell âBâ Scale) / HB 125 or Less (Hardness Brinell)

Specifications F 010

.102 in

Specifications Hole Size In Sheet 0003 0000

.328 in

Specifications Material

Heat-Treated Carbon Steel

Specifications Min Dist Hole Cl To Edge

.320 in

Specifications Min Sheet Thickness

.040 in

Specifications Shank Code

Specifications Thread Code

632

Specifications Thread Size

.138-32 (#6;-32)

Specifications Thread Specification

ANSI B1.1, 2B

Specifications Type

F10

Specifications T 010

.193 in
