Unified Steel Stud with Base Plate
Unified Steel Stud with Base Plate
SKU:PEM-843b23
High-quality Unified Steel Stud with Base Plate for secure bonding in metal applications. Thread Size: .190-32, Material: Steel, Finish: Zinc plated, Length: .750 in.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Unified Steel Stud with Base Plate
$14.99
Quantity: 1
Claim Your Seller Account
Unified Steel Stud with Base Plate
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

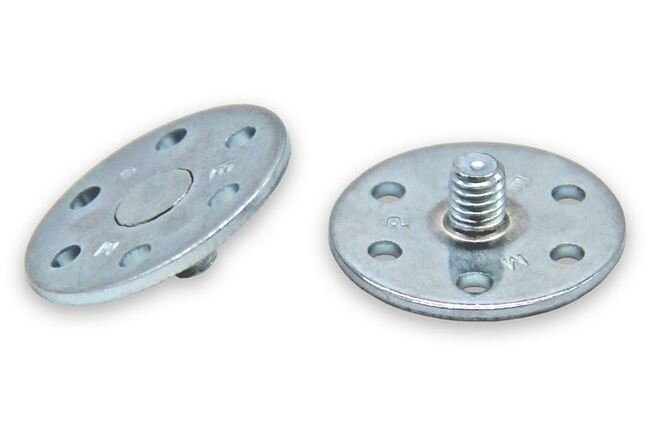

The Unified Steel Stud with Base Plate is a high-quality fastening solution designed for metal sheets and panels. Featuring a thread size of .190-32 (#10;-32) and a durable steel construction with zinc plating per ASTM B633, SC1, this stud with base plate ensures secure and reliable bonding. Manufactured by PennEngineering® (PEM®), this product offers precise dimensions with a thread code of 032 and length code of 12. With a base plate diameter of .787 inches and a stud length of .750 inches, this fastener meets the stringent standards required for industrial and government applications.
Product Specifications

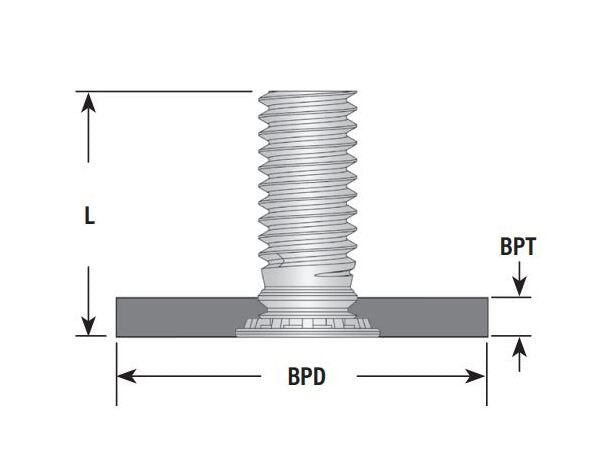

Specifications Base Plate Material
Steel
Specifications Bpd 0165
.787 in
Specifications Bpt 004
.048 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Fastener Material
Steel
Specifications Length Code
12
Specifications L 015
.750 in
Specifications Material Finish
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Thread Code
032
Specifications Thread Size
.190-32 (#10;-32)
Specifications Type
VM
Category 6
Stud with Base Plate - Steel
