Unified Steel Stud with Base Plate
Unified Steel Stud with Base Plate
SKU:PEM-bd8d00
High-quality Unified Steel Stud with Base Plate for secure bonding on metal sheets. Zinc-plated steel construction. CAD supplied by PennEngineering®.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Unified Steel Stud with Base Plate
$12.99
Quantity: 1
Claim Your Seller Account
Unified Steel Stud with Base Plate
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

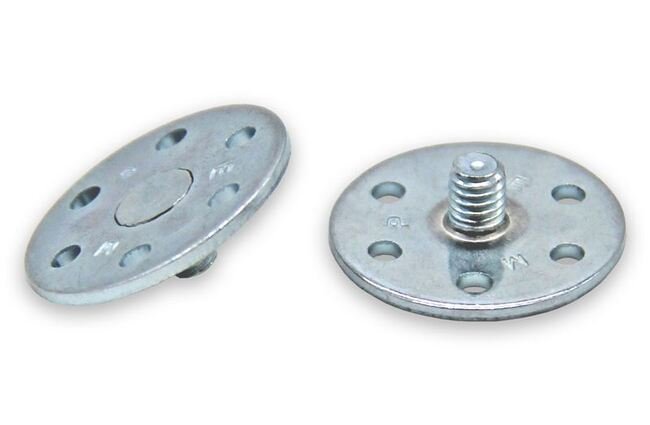

The Unified Steel Stud with Base Plate is a high-quality fastening solution designed for metal sheets and panels. With a thread size of .164-32 (#8;-32) and a length of 1.00 inch, this VM type fastener is precision-engineered for secure and reliable bonding. Constructed from zinc-plated steel per ASTM B633, SC1 standards, the stud with base plate ensures corrosion resistance and long-lasting performance. CAD supplied by PennEngineering®, this product meets stringent industry standards for durability and functionality.

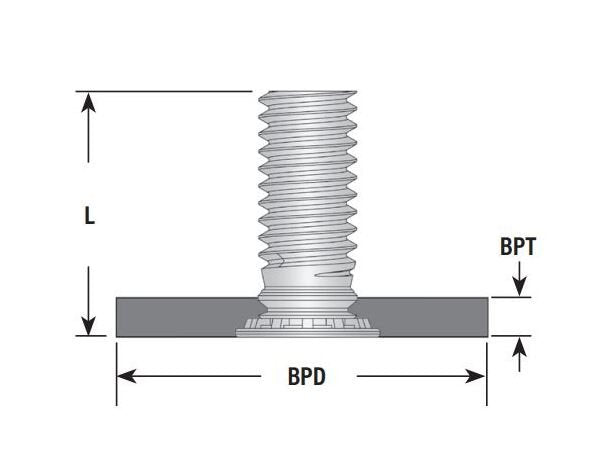

Product Specifications
Specifications Base Plate Material
Steel
Specifications Bpd 0165
.787 in
Specifications Bpt 004
.048 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Fastener Material
Steel
Specifications Length Code
16
Specifications L 015
1.00 in
Specifications Material Finish
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Thread Code
832
Specifications Thread Size
.164-32 (#8;-32)
Specifications Type
VM
Category 6
Stud with Base Plate - Steel
