Unified/Straight Thread Sealing Plug

Name: Unified/Straight Thread Sealing Plug
Brand: MOCAP LLC
SKU: SEA-756b41
Price: 99.99 USD
Availability: OutOfStock

SKU:SEA-756b41

Protect Unified/Straight threads with precision using our Sealing Plug. Secure seal, easy installation, Neoprene Rubber O-Ring option.

$99.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

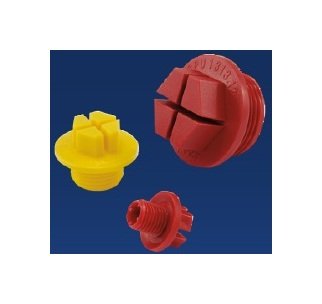

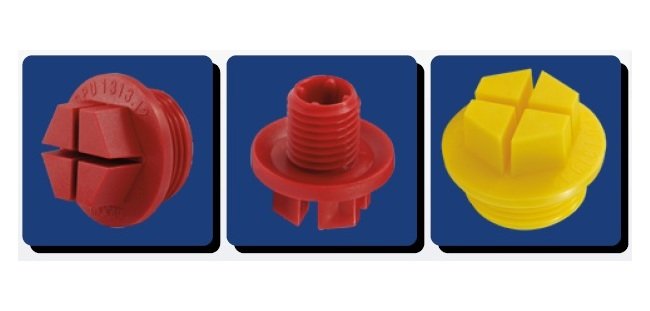

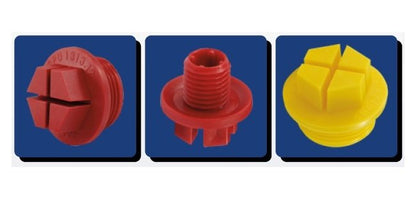

The Unified/Straight Thread Sealing Plug by MOCAP provides reliable protection for threaded ports and fittings from moisture, dust, and damage. Featuring five complete threads and a sealing lip, this plug ensures a tight fit and secure seal to safeguard components during production, shipping, and storage. Easily installed and removed by hand or using tools, it comes with the option of a factory-fitted Neoprene Rubber O-Ring for a perfect seal. Molded in red polypropylene and available in various sizes, this plug is ideal for Standard and Unified/Straight Threads from 7/16-20 to 1-5/8-12.

Product Specifications

Features 0

Our SPU Series Plugs are: Molded in red polypropylene (Standard applications)Sized to fit Unified/Straight Threads from 7/16-20 to 1-5/8-12Neoprene Rubber O-Ring

Manufacturing Notes 0

MOCAP stocks sealing plugs for Unified/Straight Threads in both red polypropylene and yellow nylon materials in many sizes for immediate shipment.Micro-Packs are only available online.These Sealing Plugs are also available with a factory-fit Neoprene Rubber O-Ring when a perfect seal is required.

Specifications Box Quantity

3000

Specifications Color

Red

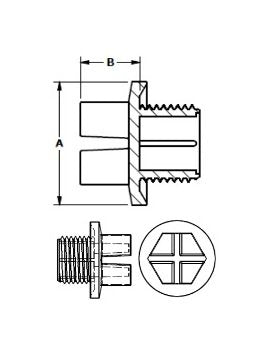

Specifications Flange Outer Diameter Dimension A

0.980 in | 24.9 mm

Specifications Length Dimension C

0.470 in | 11.9 mm

Specifications Material

Polypropylene

Specifications Micro Pack Quantity

Specifications Mini Pack Quantity

600

Specifications O Ring Material

Neoprene Rubber

Specifications Standards

RoHS Compliant

Specifications Stem Height Dimension B

0.470 in | 11.9 mm

Specifications To Fit Standard Thread Size

5/8-18

Unified/Straight Thread Sealing Plug
