Unified/Straight Thread Sealing Plug
Unified/Straight Thread Sealing Plug
SKU:SEA-104bc2
Protect Unified/Straight threads with precision using our sealing plug. Tight seal, easy application & removal, safeguard against moisture & dust.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Unified/Straight Thread Sealing Plug
$49.99
Quantity: 1
Claim Your Seller Account
Unified/Straight Thread Sealing Plug
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Unified/Straight Thread Sealing Plug by MOCAP is engineered to safeguard Unified/Straight threaded ports from moisture, dust, and harm throughout their lifecycle. Featuring a sealing lip and five complete threads for a secure seal, this plug ensures optimal protection during production, shipping, and storage. Crafted from red polypropylene with an optional Neoprene Rubber O-Ring for enhanced sealing, these plugs are user-friendly, allowing manual or tool-assisted application and removal.
Product Specifications
Features 0
Our SPU Series Plugs are: Molded in red polypropylene (Standard applications)Sized to fit Unified/Straight Threads from 7/16-20 to 1-5/8-12Neoprene Rubber O-Ring
Manufacturing Notes 0
MOCAP stocks sealing plugs for Unified/Straight Threads in both red polypropylene and yellow nylon materials in many sizes for immediate shipment.Micro-Packs are only available online.These Sealing Plugs are also available with a factory-fit Neoprene Rubber O-Ring when a perfect seal is required.
Specifications Box Quantity
500
Specifications Color
Red

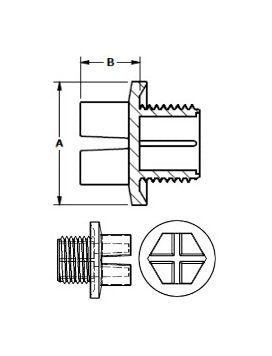

Specifications Flange Outer Diameter Dimension A
2.280 in | 57.9 mm
Specifications Length Dimension C
0.670 in | 17.0 mm
Specifications Material
Polypropylene
Specifications Micro Pack Quantity
10
Specifications Mini Pack Quantity
100
Specifications O Ring Material
Neoprene Rubber
Specifications Standards
RoHS Compliant
Specifications Stem Height Dimension B
0.590 in | 15.0 mm
Specifications To Fit Standard Thread Size
1 5/8-12
