Unified/Straight Thread Sealing Plug

Name: Unified/Straight Thread Sealing Plug
Brand: MOCAP LLC
SKU: SEA-61a4c3
Price: 49.99 USD
Availability: OutOfStock

SKU:SEA-61a4c3

Protect threaded ports and fittings with Unified/Straight Thread Sealing Plugs by MOCAP. Tight fit, secure seal, easy to apply and remove, various sizes available.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

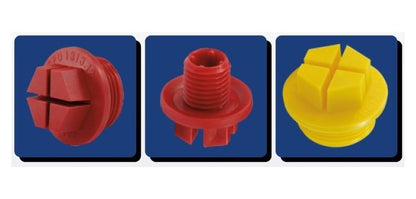

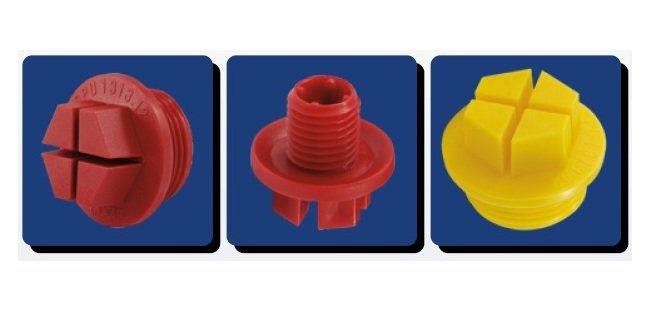

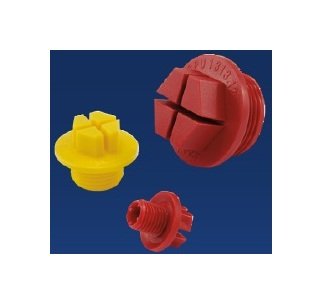

The Unified/Straight Thread Sealing Plugs by MOCAP offer reliable protection for threaded ports and fittings from moisture, dust, and damage. With a tight fit and secure seal provided by five complete threads and a sealing lip, these plugs are ideal for production, shipping, and storage environments. Made of RoHS-compliant polypropylene with a factory-fit Neoprene Rubber O-Ring option for a perfect seal, these plugs are easy to apply and remove by hand or with tools. Stocked in red polypropylene or yellow nylon, these plugs come in various sizes for immediate shipment.

Product Specifications

Features 0

Our SPU Series Plugs are: Molded in red polypropylene (Standard applications)Sized to fit Unified/Straight Threads from 7/16-20 to 1-5/8-12Neoprene Rubber O-Ring

Manufacturing Notes 0

MOCAP stocks sealing plugs for Unified/Straight Threads in both red polypropylene and yellow nylon materials in many sizes for immediate shipment.Micro-Packs are only available online.These Sealing Plugs are also available with a factory-fit Neoprene Rubber O-Ring when a perfect seal is required.

Specifications Box Quantity

5000

Specifications Color

Red

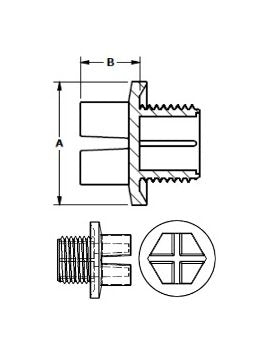

Specifications Flange Outer Diameter Dimension A

0.820 in | 20.8 mm

Specifications Length Dimension C

0.430 in | 10.9 mm

Specifications Material

Polypropylene

Specifications Micro Pack Quantity

100

Specifications Mini Pack Quantity

1000

Specifications O Ring Material

Neoprene Rubber

Specifications Standards

RoHS Compliant

Specifications Stem Height Dimension B

0.350 in | 8.9 mm

Specifications To Fit Standard Thread Size

7/16-20

Unified/Straight Thread Sealing Plug
