Unified/Straight Thread Sealing Plug

Name: Unified/Straight Thread Sealing Plug
Brand: MOCAP LLC
SKU: SEA-2d1c2e
Price: 29.99 USD
Availability: OutOfStock

SKU:SEA-2d1c2e

Protect threaded ports with precision. Sealing plugs ensure tight, secure seals. Choose with or without Neoprene O-Ring for specialized needs.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Unified/Straight Thread Sealing Plug by MOCAP is a dependable solution to safeguard Unified/Straight threaded ports and fittings from environmental elements and physical harm throughout their lifecycle. Crafted with precision, these plugs feature a sealing lip and five complete threads for a secure fit. Whether applied by hand, socket wrench, screwdriver, or power tool, these plugs ensure a tight seal. Additionally, for applications requiring an impeccable seal, opt for the variant with a factory-fitted Neoprene Rubber O-Ring. Stay confident in the protection and integrity of your threaded components with these reliable sealing plugs.

Product Specifications

Features 0

Our SPU Series Plugs are: Molded in red polypropylene (Standard applications)Sized to fit Unified/Straight Threads from 7/16-20 to 1-5/8-12

Manufacturing Notes 0

MOCAP stocks sealing plugs for Unified/Straight Threads in both red polypropylene and yellow nylon materials in many sizes for immediate shipment.Micro-Packs are only available online.

Specifications Box Quantity

5000

Specifications Color

Red

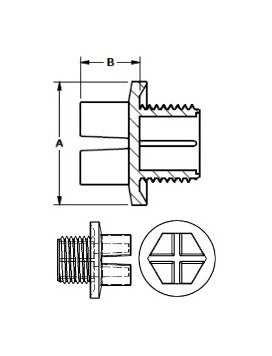

Specifications Flange Outer Diameter Dimension A

0.820 in | 20.8 mm

Specifications Length Dimension C

0.430 in | 10.9 mm

Specifications Material

Polypropylene

Specifications Micro Pack Quantity

100

Specifications Mini Pack Quantity

1000

Specifications Standards

RoHS Compliant

Specifications Stem Height Dimension B

0.350 in | 8.9 mm

Specifications To Fit Standard Thread Size

7/16-20

Unified/Straight Thread Sealing Plug
