Unified/Straight Thread Sealing Plug with Neoprene O-Ring

Unified/Straight Thread Sealing Plug with Neoprene O-Ring

SEA-f8f565

Protect threaded ports with precision! Unified/Straight Thread Sealing Plug for airtight security.

$129.99
$129.99
Sale

Initiate Order

Unified/Straight Thread Sealing Plug with Neoprene O-Ring

Unified/Straight Thread Sealing Plug with Neoprene O-Ring

$129.99

Quantity: 1

Claim Your Seller Account

Unified/Straight Thread Sealing Plug with Neoprene O-Ring

Unified/Straight Thread Sealing Plug with Neoprene O-Ring

$129.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Unified/Straight Thread Sealing Plug with Neoprene O-Ring by MOCAP is engineered to safeguard threaded ports from moisture, dust, and damage, ensuring superior protection during production, shipping, and storage. Featuring a sealing lip and five complete threads, this plug guarantees a secure seal. Crafted from polypropylene with a Neoprene Rubber O-Ring, it offers a perfect fit for thread sizes ranging from 7/16-20 to 1-5/8-12. Easily applied and removed by hand or tools, this plug is ideal for diverse applications requiring airtight sealing.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Features 0

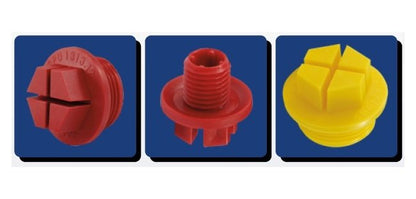

Our SPU Series Plugs are: Molded in red polypropylene (Standard applications)Sized to fit Unified/Straight Threads from 7/16-20 to 1-5/8-12Neoprene Rubber O-Ring
Manufacturing Notes 0
MOCAP stocks sealing plugs for Unified/Straight Threads in both red polypropylene and yellow nylon materials in many sizes for immediate shipment.Micro-Packs are only available online.These Sealing Plugs are also available with a factory-fit Neoprene Rubber O-Ring when a perfect seal is required.
Specifications Box Quantity
1000
Specifications Color
Red
Specifications Flange Outer Diameter Dimension A
1.650 in | 41.9 mm
Specifications Length Dimension C
0.590 in | 15.0 mm
Specifications Material
Polypropylene
Specifications Micro Pack Quantity
20
Specifications Mini Pack Quantity
200
Specifications O Ring Material
Neoprene Rubber
Specifications Standards
RoHS Compliant
Specifications Stem Height Dimension B
0.590 in | 15.0 mm
Specifications To Fit Standard Thread Size
1 5/16-12
