Unified/Straight Thread Sealing Plug with Neoprene O-Ring

Name: Unified/Straight Thread Sealing Plug with Neoprene O-Ring
Brand: MOCAP LLC
SKU: SEA-a9d42f
Price: 29.99 USD
Availability: OutOfStock

SKU:SEA-a9d42f

Protect Unified/Straight threads with precision and reliability using our sealing plug with Neoprene O-Ring. Ideal for moisture and dust protection.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

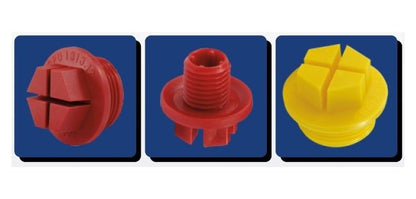

Enhance protection for Unified/Straight threaded ports with our Sealing Plug featuring a sealing lip and a Neoprene O-Ring for a secure, moisture-resistant seal. Easily applied and removed by hand or tools. Molded in red polypropylene to fit various thread sizes, these plugs safeguard fittings during production, shipping, and storage.

Product Specifications

Features 0

Our SPU Series Plugs are: Molded in red polypropylene (Standard applications)Sized to fit Unified/Straight Threads from 7/16-20 to 1-5/8-12

Manufacturing Notes 0

MOCAP stocks sealing plugs for Unified/Straight Threads in both red polypropylene and yellow nylon materials in many sizes for immediate shipment.Micro-Packs are only available online.

Specifications Box Quantity

3000

Specifications Color

Red

Specifications Flange Outer Diameter Dimension A

1.330 in | 33.8 mm

Specifications Length Dimension C

0.550 in | 14.0 mm

Specifications Material

Polypropylene

Specifications Micro Pack Quantity

Specifications Mini Pack Quantity

600

Specifications Standards

RoHS Compliant

Specifications Stem Height Dimension B

0.470 in | 11.9 mm

Specifications To Fit Standard Thread Size

7/8-14

Unified/Straight Thread Sealing Plug with Neoprene O-Ring
