Unified/Straight Threads Sealing Plug

Name: Unified/Straight Threads Sealing Plug
Brand: MOCAP LLC
SKU: SEA-feaf2e
Price: 49.99 USD
Availability: OutOfStock

SKU:SEA-feaf2e

Protect Unified/Straight threaded ports with precision using our Sealing Plug. Secure fit, easy application, RoHS compliant.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

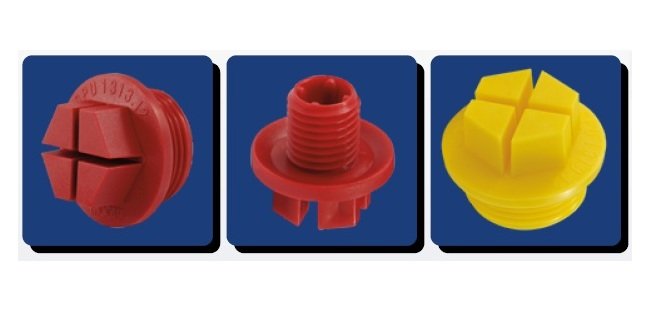

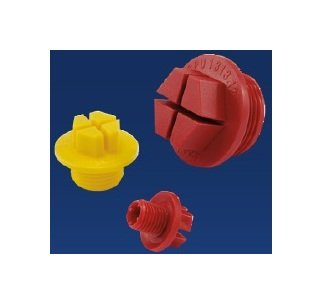

The Unified/Straight Threads Sealing Plug by MOCAP is a premium solution for safeguarding Unified/Straight threaded ports from moisture, dust, and damage. With a tight fit and robust sealing lip, this plug ensures secure protection during production, storage, and shipping. Easy to apply and remove using various tools, including hand application and power tools. Available with a Neoprene Rubber O-Ring for a perfect seal. Designed in compliance with RoHS standards for quality assurance.

Product Specifications

Features 0

Our SPU Series Plugs are: Molded in red polypropylene (Standard applications)Sized to fit Unified/Straight Threads from 7/16-20 to 1-5/8-12Neoprene Rubber O-Ring

Manufacturing Notes 0

MOCAP stocks sealing plugs for Unified/Straight Threads in both red polypropylene and yellow nylon materials in many sizes for immediate shipment.Micro-Packs are only available online.These Sealing Plugs are also available with a factory-fit Neoprene Rubber O-Ring when a perfect seal is required.

Specifications Box Quantity

1000

Specifications Color

Red

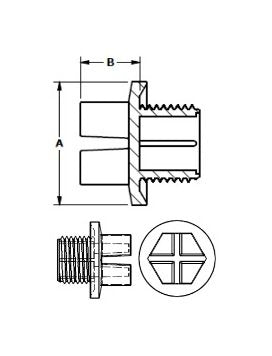

Specifications Flange Outer Diameter Dimension A

1.610 in | 40.9 mm

Specifications Length Dimension C

0.550 in | 14.0 mm

Specifications Material

Polypropylene

Specifications Micro Pack Quantity

Specifications Mini Pack Quantity

200

Specifications O Ring Material

Neoprene Rubber

Specifications Standards

RoHS Compliant

Specifications Stem Height Dimension B

0.470 in | 11.9 mm

Specifications To Fit Standard Thread Size

1 1/16-12

Unified/Straight Threads Sealing Plug
