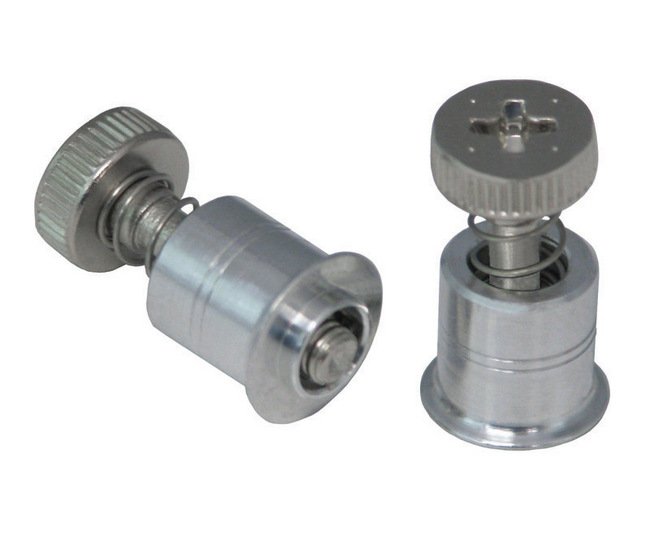

Unified Type PF7MF Captive Panel Screw
Unified Type PF7MF Captive Panel Screw
SKU:PEM-5d0441
Premium Unified Type PF7MF Captive Panel Screw for precise, flush installations with corrosion-resistant finish
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Unified Type PF7MF Captive Panel Screw
$14.99
Quantity: 1
Claim Your Seller Account
Unified Type PF7MF Captive Panel Screw
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Unified Type PF7MF Captive Panel Screw is designed for precise applications, offering easy installation without high force requirements. Crafted from premium materials, including heat-treated carbon steel for the screw and 300 series stainless steel for the spring, this screw ensures durability and reliability. With a bright nickel over copper flash finish, it provides corrosion resistance and a sleek appearance. Meeting ASME B1.1, 2A thread specifications, this screw is ideal for close centerline-to-edge installations in various panel hardnesses, guaranteeing a flush fit on the panel's backside.

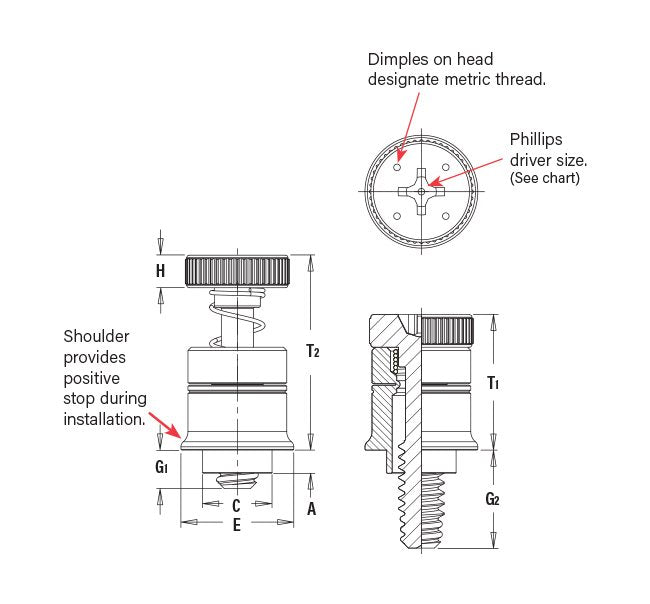

Product Specifications
Specifications A Shank Max
.041 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.186 in
Specifications E 010
.310 in
Specifications Finish Retainer
Natural finish
Specifications Finish Screw
Bright nickel over copper flash
Specifications Finish Spring
Natural Finish
Specifications G1 025
.100 in
Specifications G2 025
.270 in
Specifications Hole Size In Sheet 0005 0000
.187 in
Specifications H 010
.100 in
Specifications Material Retainer
Aluminum
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Sheet Thickness
.031 in
Specifications Screw Length Code
1
Specifications T1 Nom
.38 in
Specifications T2 Nom
.55 in
Specifications Thread Code
440
Specifications Thread Size
.112-40 (#4;-40)
Specifications Thread Specification
ASME B1.1, 2A
Specifications Type
PF7MF
