Unified Type PF7MF Captive Panel Screw
Unified Type PF7MF Captive Panel Screw
SKU:PEM-1149d6
High-quality Unified Type PF7MF Captive Panel Screw for secure flush installation in metal panels. Meets ASME B1.1, 2A standards.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Unified Type PF7MF Captive Panel Screw
$14.99
Quantity: 1
Claim Your Seller Account
Unified Type PF7MF Captive Panel Screw
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

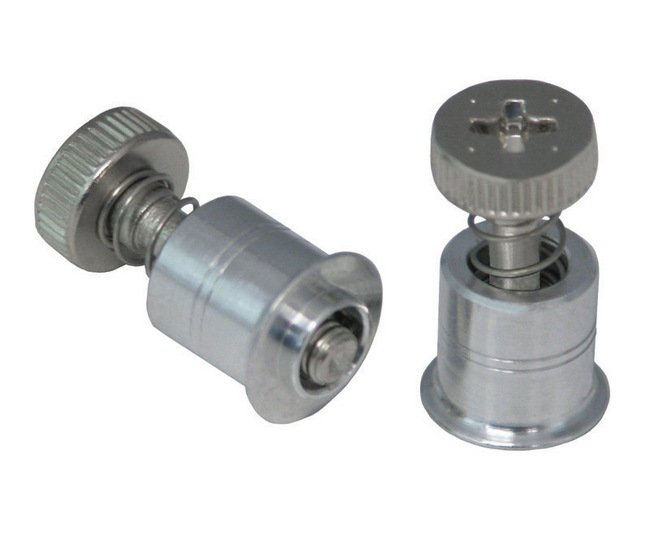

The Unified Type PF7MF Captive Panel Screw is designed for close centerline-to-edge applications with easy installation into panels of any hardness. Featuring a spring-loaded flare mount, this screw offers a secure and flush fit on the back side of the panel. With specifications meeting ASME B1.1, 2A standards, the screw is crafted from heat-treated carbon steel, the retainer from aluminum, and the spring from 300 series stainless steel, ensuring durability and reliability in various environments.
Product Specifications

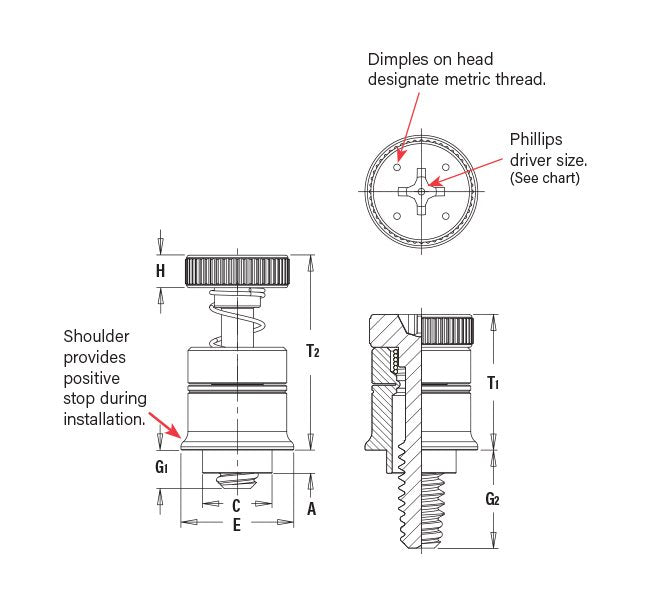

Specifications A Shank Max
.072 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.265 in
Specifications E 010
.405 in
Specifications Finish Retainer
Natural finish
Specifications Finish Screw
Bright nickel over copper flash
Specifications Finish Spring
Natural Finish
Specifications G1 025
.100 in
Specifications G2 025
.300 in
Specifications Hole Size In Sheet 0005 0000
.266 in
Specifications H 010
.120 in
Specifications Material Retainer
Aluminum
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Sheet Thickness
.060 in
Specifications Screw Length Code
1
Specifications T1 Nom
.430 in
Specifications T2 Nom
.630 in
Specifications Thread Code
832
Specifications Thread Size
.164-32 (#8;-32)
Specifications Thread Specification
ASME B1.1, 2A
Specifications Type
PF7MF
