Unified Type PFK Captive Screws for PC Boards

Unified Type PFK Captive Screws for PC Boards

PEM-deb67b

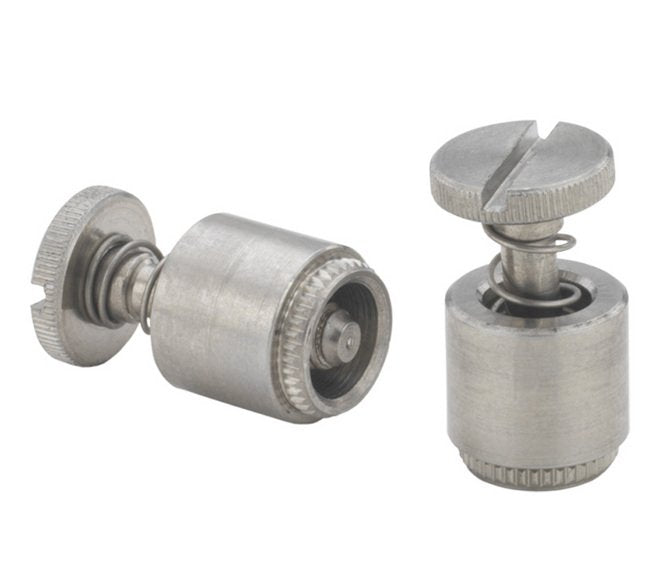

High-quality Unified Type PFK Captive Screws for PC boards, crafted from 300 Series Stainless Steel with Passivated finish for durability and corrosion resistance.

$24.99
$24.99
Sale

Initiate Order

Unified Type PFK Captive Screws for PC Boards

Unified Type PFK Captive Screws for PC Boards

$24.99

Quantity: 1

Claim Your Seller Account

Unified Type PFK Captive Screws for PC Boards

Unified Type PFK Captive Screws for PC Boards

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

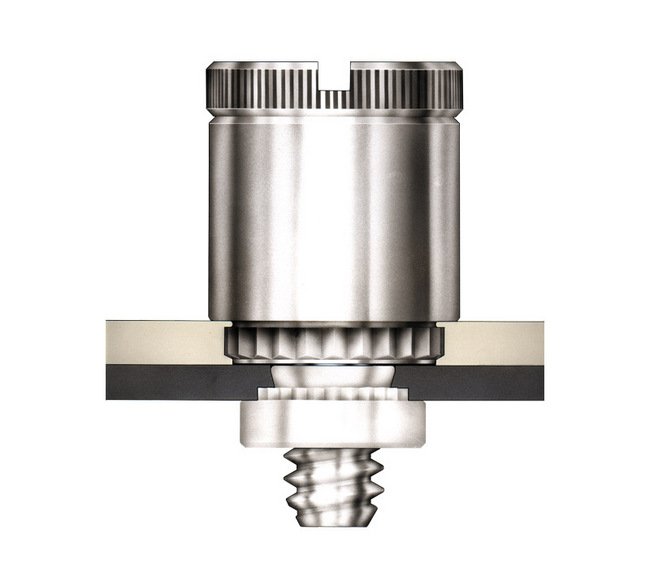

The Unified Type PFK Captive Screws are designed for secure fastening in PC boards with precision specifications including .138-32 thread size, min. sheet thickness of .060 in, and material crafted from 300 Series Stainless Steel. These screws provide reliable retention for applications requiring durability and strength. The Passivated finish ensures corrosion resistance, meeting ASTM A380 standards.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

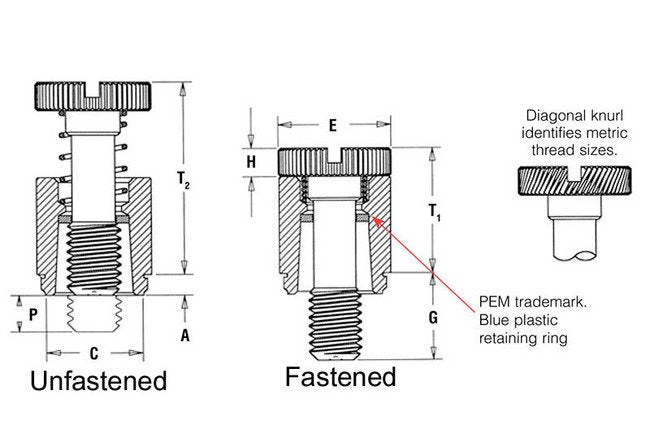

Product Specifications

Specifications A Shank Max
.060 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C 003
.299 in
Specifications E 010
.344 in
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 70 or Less (Hardness Rockwell “B” Scale) / HB 125 or Less (Hardness Brinell)
Specifications G 016
.375 in
Specifications Hole Size In Sheet 0003 0000
.281 in
Specifications H 005
.072 in
Specifications Material Retainer
300 Series Stainless Steel
Specifications Material Screw
300 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
.260 in
Specifications Min Sheet Thickness
.060 in
Specifications P 025
.125 in
Specifications Screw Length Code
62
Specifications T1 Max
.360 in
Specifications T2 Nom
.540 in
Specifications Thread Code
632
Specifications Thread Size
.138-32 (#6;-32)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
PFK
