Unified Type PFK Captive Screws for PC Boards - Pack of 25

Unified Type PFK Captive Screws for PC Boards - Pack of 25

PEM-de3ed8

Securely fasten PC board components with precision using our Unified Type PFK Captive Screws, designed for #4-40 threads. Compliant with ANSI B1.1 standards.

$49.99
$49.99
Sale

Initiate Order

Unified Type PFK Captive Screws for PC Boards - Pack of 25

Unified Type PFK Captive Screws for PC Boards - Pack of 25

$49.99

Quantity: 1

Claim Your Seller Account

Unified Type PFK Captive Screws for PC Boards - Pack of 25

Unified Type PFK Captive Screws for PC Boards - Pack of 25

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Enhance your PC board assembly with our Unified Type PFK Captive Screws. These #4-40 screws with a .060in shank are designed to securely fasten components on metal sheets up to .060in thick. Made of 300 Series Stainless Steel, passivated to ASTM A380 standards, ensuring durability and corrosion resistance. The natural finish spring provides reliable retention. Compliant with ANSI B1.1 thread specifications. Improve efficiency and consistency in your installations with PennEngineering®'s quality screws.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

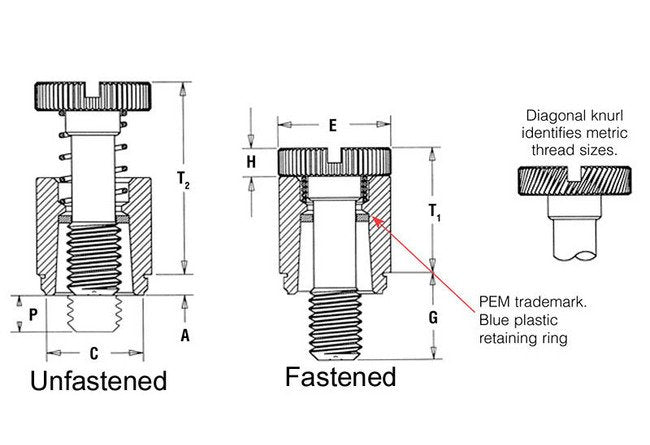

Product Specifications

Specifications A Shank Max
.060 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C 003
.283 in
Specifications E 010
.312 in
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 70 or Less (Hardness Rockwell “B” Scale) / HB 125 or Less (Hardness Brinell)
Specifications G 016
.500 in
Specifications Hole Size In Sheet 0003 0000
.265 in
Specifications H 005
.072 in
Specifications Material Retainer
300 Series Stainless Steel
Specifications Material Screw
300 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
.20 in
Specifications Min Sheet Thickness
.060 in
Specifications P 025
.250 in
Specifications Screw Length Code
84
Specifications T1 Max
.360 in
Specifications T2 Nom
.540 in
Specifications Thread Code
440
Specifications Thread Size
.112-40 (#4;-40)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
PFK
