Unified Types PFC2, PFS2 Spring-loaded Captive Panel Screw

Name: Unified Types PFC2, PFS2 Spring-loaded Captive Panel Screw
Brand: Hi-Tech Fasteners, Inc.
SKU: PEM-825072
Price: 24.99 USD
Availability: OutOfStock

SKU:PEM-825072

Versatile Unified Types PFC2, PFS2 Spring-loaded Captive Panel Screw meeting operator access area requirements with ANSI B1.1, 2A specifications and bright nickel finish.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

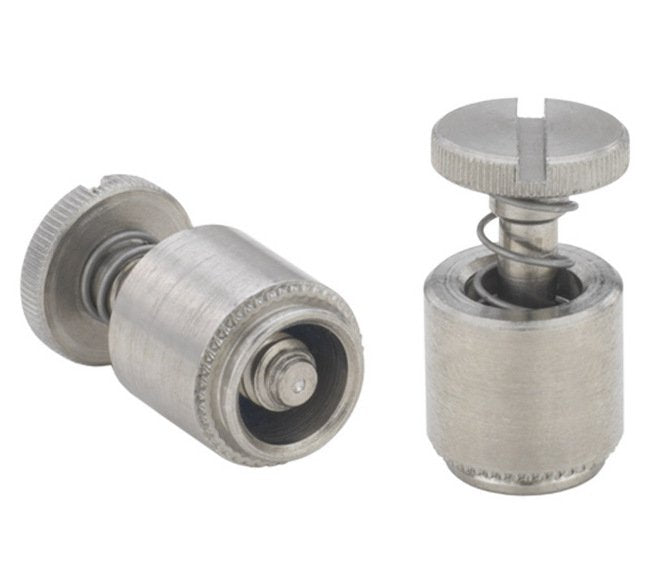

The Unified Types PFC2, PFS2 Spring-loaded Captive Panel Screw is a versatile solution designed for metal sheets and panels. Crafted from durable materials including heat-treated carbon steel and 300 series stainless steel, this screw meets stringent operator access area requirements akin to UL 508. Featuring tool or finger operation, it offers ease of use in various applications. With multiple screw lengths available, precise specifications conform to ANSI B1.1, 2A standards. Ideal for sheet hardness levels up to HRB 80 or HB 150, this screw is finished with bright nickel over copper flash for enhanced durability.

Product Specifications

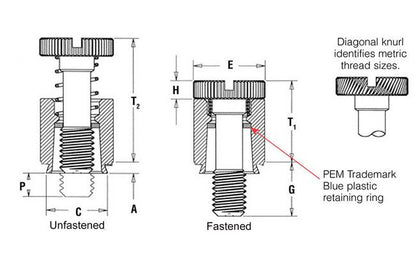

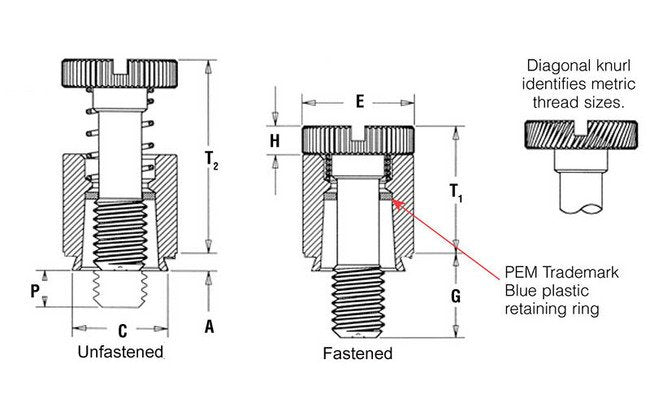

Specifications A Shank Max

.060 in

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications Cad View

Unfastened

Specifications C Max

.264 in

Specifications E 010

.312 in

Specifications Finish Retainer

Bright Nickel over Copper Flash per ASTM B689

Specifications Finish Screw

Bright nickel over copper flash per ASTM B689

Specifications Finish Spring

Natural Finish

Specifications For Use In Sheet Hardness

HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)

Specifications G 016

.250 in

Specifications Hole Size In Sheet 0003 0000

.265 in

Specifications H 005

.072 in

Specifications Material Retainer

Heat-Treated Carbon Steel

Specifications Material Screw

Carbon Steel

Specifications Material Spring

300 Series Stainless Steel

Specifications Min Dist Hole Cl To Edge

.250 in

Specifications Min Sheet Thickness

.060 in

Specifications P 025

.000 in

Specifications Screw Length Code

Specifications T1 Max

.360 in

Specifications T2 Nom

.540 in

Specifications Thread Code

440

Specifications Thread Size

.112-40 (#4;-40)

Specifications Thread Specification

ANSI B1.1, 2A

Specifications Type

PFS2
