Unilok 316 SS Female Connector, 3/8 TF x 3/8-18 FNPT
Unilok 316 SS Female Connector, 3/8 TF x 3/8-18 FNPT
SKU:HEM-c2ab3e
High-quality Unilok 316 SS Female Connector for precise tube fittings, corrosion-resistant, 3/8 TF x 3/8-18 FNPT. Ideal for institutional use.
Regular price
$22.25
Regular price
Sale price
$22.25
Unit price
per
Initiate Order
Unilok 316 SS Female Connector, 3/8 TF x 3/8-18 FNPT
$22.25
Quantity: 1
Claim Your Seller Account
Unilok 316 SS Female Connector, 3/8 TF x 3/8-18 FNPT
$22.25
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Unilok 316 SS Female Connector is precision-engineered for seamless tube connections in instrumentation applications. Made of high-grade 316 SS material, it ensures durability and resistance to corrosion. With a 3/8 TF x 3/8-18 FNPT configuration, this straight connector guarantees secure and reliable fittings. Its compact design with precise dimensions like A: 1.54 in, C: 0.76 in, and D: 0.66 in offers easy installation and maintenance. Certified to meet stringent industry standards, the Unilok Female Connector is ideal for demanding institutional and government procurement needs.

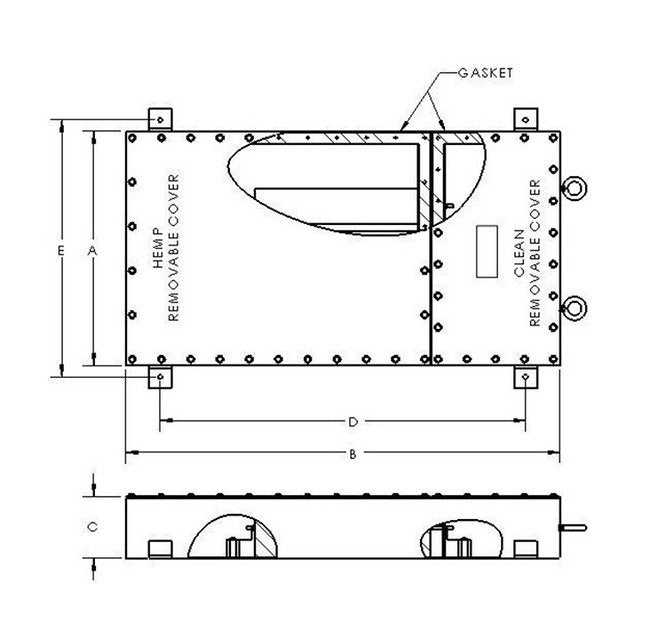

Product Specifications
Dimensions Dimension A
28.0 in
Dimensions Dimension B
46.0 in
Dimensions Dimension C
9.0 in
Dimensions Dimension D
40.0 in
Dimensions Dimension E
30.0 in
Enclosure Enclosure
Modified NEMA 1 type enclosureCabinets: Stainless steel constructionStand alone filters and inserts: Cold rolled steel construction with a corrosion resistant platingEpoxy paint optionalShielding effectiveness on clean side greater than 100 dB from 14 kHz to 10 GHzDual removable access covers.
Features Features
Inductive inputIndividually Filtered LinesSurge arrestors V481BA60 includedCustom options available
Note Note
Specifications subject to change.
Specifications Compliance
MIL-STD-188-125-1 | MIL-STD-188-125-2
Specifications Current
60 A
Specifications Dielectric Withstanding Voltage
2250 VDC Line-to-Chassis Per MIL-STD-202, Method 301 Prior to Surge Arrestor and Discharge Resistor Installation
Specifications Estimated Weight
300 lb
Specifications Frequency
60 Hz
Specifications High Altitude Electromagnetic Pulse Hemp Complian
Per MIL-STD-188-125-1 and MIL-STD-188-125-2 as Power Line (Intrasite) Point of Entry Filter for Short (E1) and Intermediate (E2) Pulses.
Specifications Insertion Loss Curve
Curve 2, High Performance Minimum Insertion Loss
Specifications Insulation Resistance
Per MIL-PRF-15733, prior to discharge resistor installation.
Specifications Leakage Current
< 10% of Rated Current 10 through 150 Amperes, < 1 Amp for 5 Amp Filters
Specifications Minimum Insertion Loss
100 dB @ 14 kHz to 10 GHz
Specifications Number Of Circuits
4
Specifications Operating Temperature
-40 to +65 °C
Specifications Storage Temperature
-55 to +105 °C
Specifications Voltage Discharge
Discharge to Less than 30 Volts within 30 s After Removal of Power
Specifications Voltage Drop
Less than 1% of rated voltage per paragraph 4.6.8 of MIL-PRF-15733
Specifications Voltage Rating Ac
277 V | 480 V
