Unilok Alloy C-276 Female Connector, 5/16 Tube x 1/4-18 FNPT
Unilok Alloy C-276 Female Connector, 5/16 Tube x 1/4-18 FNPT
SKU:HEM-bf6657
Unilok Alloy C-276 Female Connector - Reliable, Precise, Durable. Perfect for industrial applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Unilok Alloy C-276 Female Connector, 5/16 Tube x 1/4-18 FNPT
$49.99
Quantity: 1
Claim Your Seller Account
Unilok Alloy C-276 Female Connector, 5/16 Tube x 1/4-18 FNPT
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior connectivity with the Unilok Alloy C-276 Female Connector designed for precision instrumentation applications. This straight connector features Alloy C-276 construction, ensuring durability and corrosion resistance. With a 5/16-inch tube fitting on one end and a 1/4-18 FNPT connection on the other, this connector offers reliable performance in industrial settings. Its compact dimensions of A: 1.45 in, C: 0.73 in, D: 0.64 in make it ideal for tight spaces. Trust Unilok for quality and precision in every connection.
Product Specifications

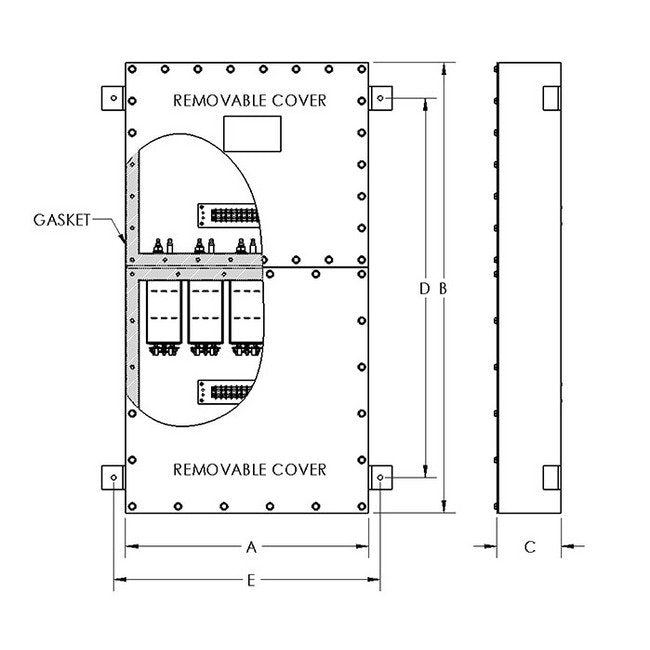

Dimensions Dimension A
18.00 in
Dimensions Dimension B
24.0 in
Dimensions Dimension C
12.0 in
Dimensions Dimension D
18.0 in
Dimensions Dimension E
20.0 in
Enclosure Enclosure
Modified NEMA 1 type enclosureStainless Steel constructionEpoxy paint optionalShielding Effectiveness on protected side greater than 100 dB up to 10 GHzSupplied with push pin terminal blocks or screw type terminal blocks Alternate mounting availableCaptor can supply just the cabinet or the cabinet with various filter inserts installed in accordance with your requirements
Filter Options Filter Options
Captor offers multiple filter inserts designed to meet MIL-188-125 HEMP requirementsA-10357, A-10362, A-10365 and A-10370 are 1.50" x 2.50" filter inserts that will fit into the C-10430 cabinet
Note Note
Specifications subject to change.
Specifications Application
For Use with 1.50" x 2.50" Filter Inserts
Specifications Enclosure Standards
NEMA 1
Specifications Estimated Empty Cabinet Weight
55 lb
Specifications Maximum Number Of 2 Circuit Filter Inserts
25
