Unilok Brass Female Connector - 1/2 Tube x 3/8-18 FNPT

Unilok Brass Female Connector - 1/2 Tube x 3/8-18 FNPT

SKU:HEM-1d3bb9

Enhance your system with the Unilok Brass Female Connector for secure and precise tubing connections.

Regular price $10.35
Regular price Sale price $10.35
Sale

Initiate Order

Unilok Brass Female Connector - 1/2 Tube x 3/8-18 FNPT

Unilok Brass Female Connector - 1/2 Tube x 3/8-18 FNPT

$10.35

Quantity: 1

Claim Your Seller Account

Unilok Brass Female Connector - 1/2 Tube x 3/8-18 FNPT

Unilok Brass Female Connector - 1/2 Tube x 3/8-18 FNPT

$10.35

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Upgrade your fluid system with the Unilok Brass Female Connector. This straight connector features durable brass construction, ensuring reliable performance. With a 1/2 inch Tube Fitting and 3/8-18 FNPT, it offers secure connections ideal for instrumentation applications. The Unilok series guarantees precision and quality, meeting industry standards for seamless integration into your setup.

Product Specifications

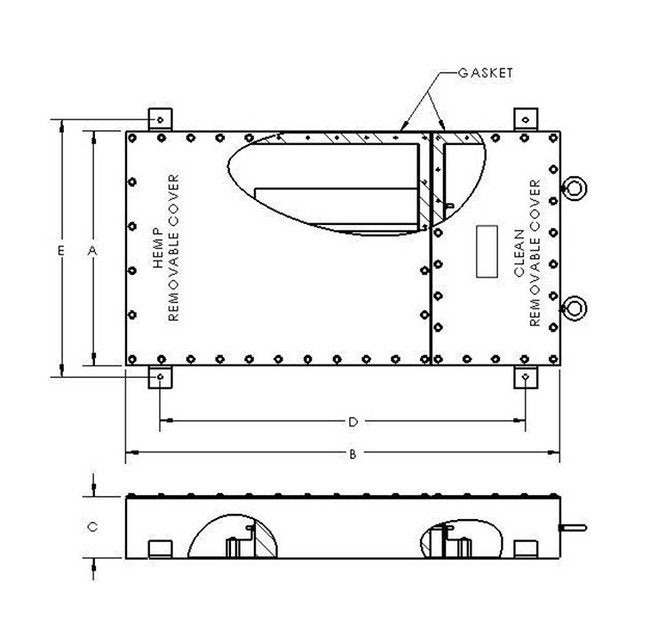

Dimensions Dimension A
22.0 in
Dimensions Dimension B
40.0 in
Dimensions Dimension C
9.0 in
Dimensions Dimension D
34.0 in
Dimensions Dimension E
24.0 in
Enclosure Enclosure
Modified NEMA 1 type enclosureCabinets: Stainless steel constructionStand alone filters and inserts: Cold rolled steel construction with a corrosion resistant platingEpoxy paint optionalShielding effectiveness on clean side greater than 100 dB from 14 kHz to 10 GHzDual removable access covers.
Features Features
Inductive inputIndividually Filtered LinesSurge arrestors V481BA60 includedCustom options available
Note Note
Specifications subject to change.
Specifications Compliance
MIL-STD-188-125-1 | MIL-STD-188-125-2
Specifications Current
60 A
Specifications Dielectric Withstanding Voltage
2250 VDC Line-to-Chassis Per MIL-STD-202, Method 301 Prior to Surge Arrestor and Discharge Resistor Installation
Specifications Estimated Weight
210 lb
Specifications Frequency
60 Hz
Specifications High Altitude Electromagnetic Pulse Hemp Complian
Per MIL-STD-188-125-1 and MIL-STD-188-125-2 as Power Line (Intrasite) Point of Entry Filter for Short (E1) and Intermediate (E2) Pulses.

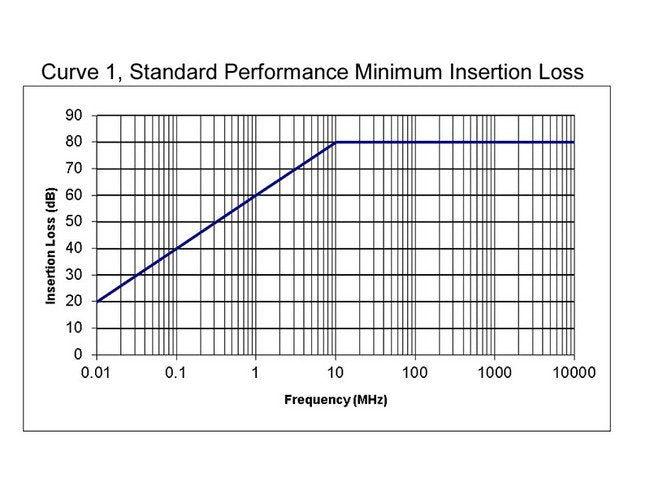

Specifications Insertion Loss Curve
Curve 1, Standard Performance Minimum Insertion Loss
Specifications Insulation Resistance
Per MIL-PRF-15733, prior to discharge resistor installation.
Specifications Leakage Current
< 10% of Rated Current 10 through 150 Amperes, < 1 Amp for 5 Amp Filters
Specifications Minimum Insertion Loss
20 dB @ 10 kHz | 40 dB @ 100 kHz | 60 dB @ 1 MHz | 80 dB @ 10 MHz to 10 GHz
Specifications Number Of Circuits
3
Specifications Operating Temperature
-40 to +65 °C
Specifications Storage Temperature
-55 to +105 °C
Specifications Voltage Discharge
Discharge to Less than 30 Volts within 30 s After Removal of Power
Specifications Voltage Drop
Less than 1% of rated voltage per paragraph 4.6.8 of MIL-PRF-15733
Specifications Voltage Rating Ac
277 V | 480 V
