Unilok Bulkhead Tube Stub Adapter - C-276, 1/8 TF x 1/8 Tube Stub
Unilok Bulkhead Tube Stub Adapter - C-276, 1/8 TF x 1/8 Tube Stub
SKU:SSP-ee8587
Durable Unilok C-276 Bulkhead Tube Stub Adapter for 1/8 in. connections, meets industry standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Unilok Bulkhead Tube Stub Adapter - C-276, 1/8 TF x 1/8 Tube Stub
$24.99
Quantity: 1
Claim Your Seller Account
Unilok Bulkhead Tube Stub Adapter - C-276, 1/8 TF x 1/8 Tube Stub
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

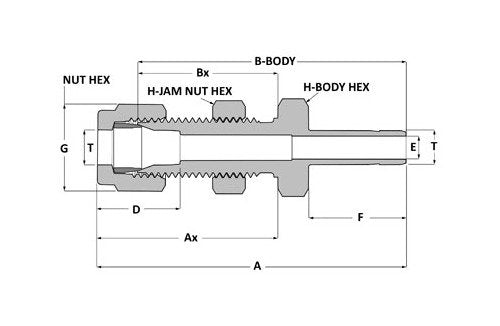

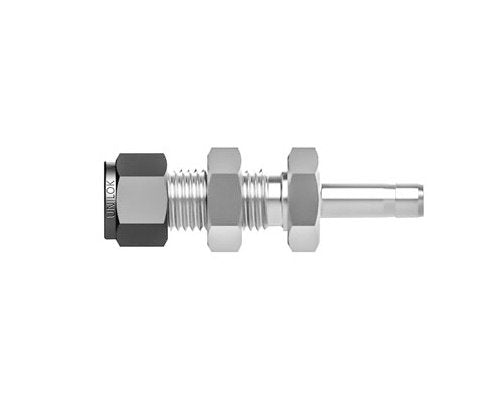

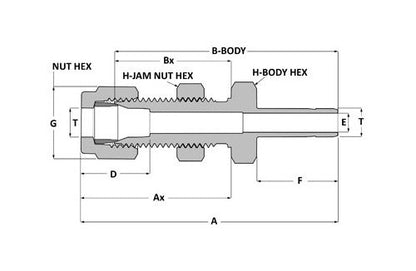

The Unilok Bulkhead Tube Stub Adapter is crafted from Alloy C-276, ensuring exceptional durability for demanding industrial environments. This fitting features a Tube Fitting connection on one end and a Tube Stub connection on the other, both sized at 1/8 inches. Its bulkhead design offers secure installation, with precise dimensions of A: 1.95 in, Bx: 0.97 in, D: 0.50 in, and more, meeting stringent industry standards for instrumentation tube fittings.
Product Specifications
Dimensions A
1.95 in
Dimensions Ax
1.23 in
Dimensions B
1.69 in
Dimensions Bx
0.97 in
Dimensions D
0.50 in
Dimensions E
0.06 in
Dimensions F
0.53 in
Dimensions G
7/16 in
Dimensions H
1/2 in
Dimensions Maximum Panel Thickness
0.50 in
Dimensions Panel Hole Drill Size
21/64 in
Dimensions T
1/8 in
Specifications Body Material
Alloy C-276
Specifications Brand Series
Unilok
Specifications Connection 1 Size
1/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
Tube Stub
Specifications End Connections
TF x Tube Stub
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Unilok® Tube Fittings
