Unilok C-276 Calibration Union 1/4 Tube Fitting
Unilok C-276 Calibration Union 1/4 Tube Fitting
SKU:SSP-ebdb46
Unilok C-276 Calibration Union, 1/4 Tube Fitting x 1/4 Calibration, Alloy C-276
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Unilok C-276 Calibration Union 1/4 Tube Fitting
$79.99
Quantity: 1
Claim Your Seller Account
Unilok C-276 Calibration Union 1/4 Tube Fitting
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

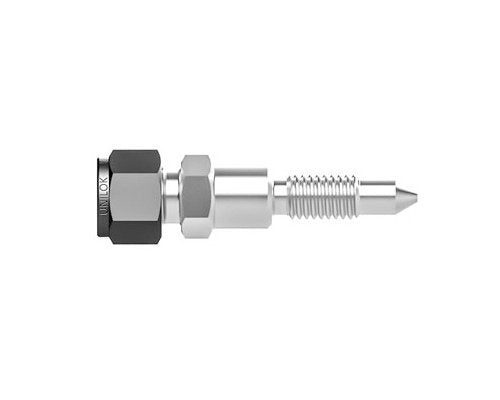

The Unilok C-276 Calibration Union is a premium instrumentation tube fitting meticulously crafted using Alloy C-276 for superior durability and corrosion resistance. This fitting features a straight design with a Tube Fitting connection of 1/4 inches and a Calibration connection of 1/4-28 UNF, ensuring precision and reliability in calibration processes. With precise dimensions and Unilok brand quality, this fitting guarantees a secure and accurate connection for your instrumentation needs.

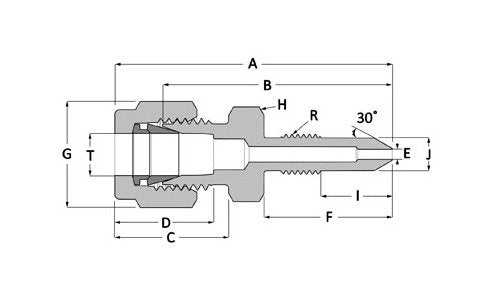

Product Specifications
Dimensions A
1.69 in
Dimensions B
1.40 in
Dimensions C
0.70 in
Dimensions D
0.60 in
Dimensions E
0.06 in
Dimensions F
0.78 in
Dimensions G
9/16 in
Dimensions H
1/2 in
Dimensions I
0.43 in
Dimensions J
0.20 | 0.20 in
Dimensions R
1/4-28 UNF
Dimensions T
1/4 in
Specifications Body Material
Alloy C-276
Specifications Brand Series
Unilok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4-28 UNF
Specifications Connection 2 Type
Calibration
Specifications End Connections
TF x Calibration
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Specifications Specialty
Calibration
Category 6
Unilok® Tube Fittings
