Unilok Female Connector - 316 SS, 1/4 TF x 3/8 FNPT
Unilok Female Connector - 316 SS, 1/4 TF x 3/8 FNPT
SKU:HEM-50bcf5
High-quality Unilok Female Connector - 316 SS, 1/4 TF x 3/8 FNPT for secure, leak-free connections in instrumentation applications.
Regular price
$20.25
Regular price
Sale price
$20.25
Unit price
per
Initiate Order
Unilok Female Connector - 316 SS, 1/4 TF x 3/8 FNPT
$20.25
Quantity: 1
Claim Your Seller Account
Unilok Female Connector - 316 SS, 1/4 TF x 3/8 FNPT
$20.25
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Unilok Female Connector is crafted from high-grade 316 stainless steel, ensuring durability and corrosion resistance. Featuring a 1/4-inch Tube Fitting connected to a 3/8 FNPT, it provides a secure and leak-free connection. With precise dimensions and a straight shape design, this connector guarantees a perfect fit. Ideal for instrumentation applications, this Unilok Connector meets stringent industry standards for quality and performance.
Product Specifications

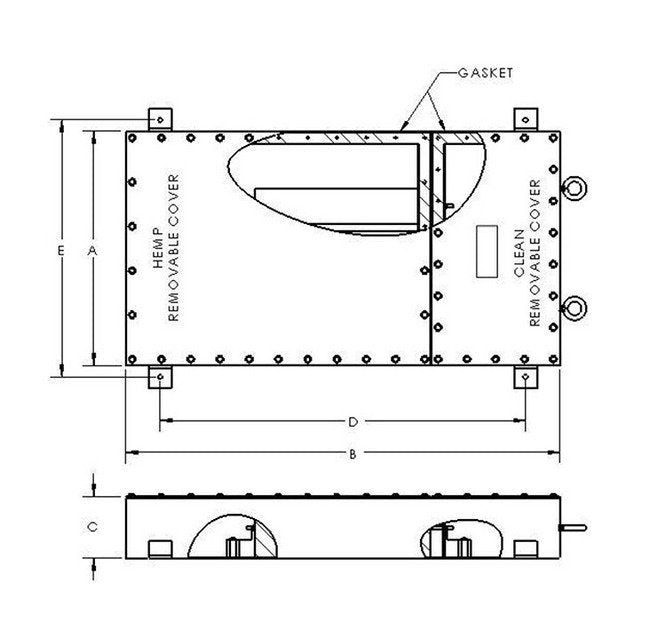

Dimensions Dimension A
28.0 in
Dimensions Dimension B
44.0 in
Dimensions Dimension C
12.0 in
Dimensions Dimension D
38.0 in
Dimensions Dimension E
30.0 in
Enclosure Enclosure
Modified NEMA 1 type enclosureCabinets: Stainless steel constructionStand alone filters and inserts: Cold rolled steel construction with a corrosion resistant platingEpoxy paint optionalShielding effectiveness on clean side greater than 100 dB from 14 kHz to 10 GHzDual removable access covers.
Features Features
Inductive inputIndividually Filtered LinesSurge arrestors V481BA60 includedCustom options available
Note Note
Specifications subject to change.
Specifications Compliance
MIL-STD-188-125-1 | MIL-STD-188-125-2
Specifications Current
150 A
Specifications Dielectric Withstanding Voltage
2250 VDC Line-to-Chassis Per MIL-STD-202, Method 301 Prior to Surge Arrestor and Discharge Resistor Installation
Specifications Estimated Weight
395 lb
Specifications Frequency
60 Hz
Specifications High Altitude Electromagnetic Pulse Hemp Complian
Per MIL-STD-188-125-1 and MIL-STD-188-125-2 as Power Line (Intrasite) Point of Entry Filter for Short (E1) and Intermediate (E2) Pulses.

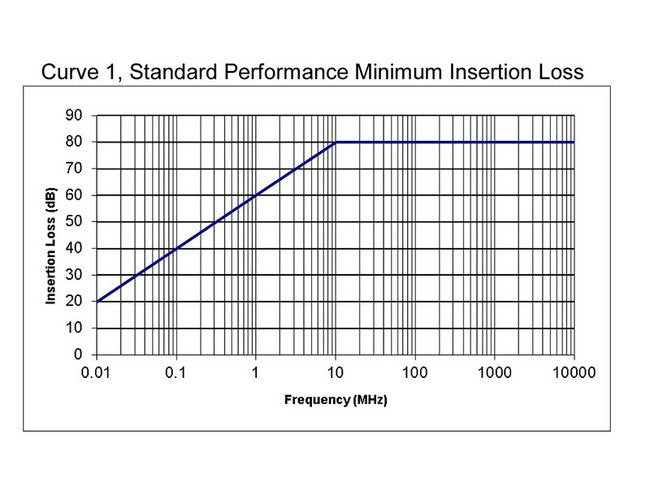

Specifications Insertion Loss Curve
Curve 1, Standard Performance Minimum Insertion Loss
Specifications Insulation Resistance
Per MIL-PRF-15733, prior to discharge resistor installation.
Specifications Leakage Current
< 10% of Rated Current 10 through 150 Amperes, < 1 Amp for 5 Amp Filters
Specifications Minimum Insertion Loss
20 dB @ 10 kHz | 40 dB @ 100 kHz | 60 dB @ 1 MHz | 80 dB @ 10 MHz to 10 GHz
Specifications Number Of Circuits
4
Specifications Operating Temperature
-40 to +65 °C
Specifications Storage Temperature
-55 to +105 °C
Specifications Voltage Discharge
Discharge to Less than 30 Volts within 30 s After Removal of Power
Specifications Voltage Drop
Less than 1% of rated voltage per paragraph 4.6.8 of MIL-PRF-15733
Specifications Voltage Rating Ac
277 V | 480 V
