Unilok Female Connector - Alloy 400, 1/4 Tube Fitting x 3/8-18 FNPT
Unilok Female Connector - Alloy 400, 1/4 Tube Fitting x 3/8-18 FNPT
SKU:HEM-1056e8
Enhance tube connections with the Unilok Female Connector - Alloy 400, designed for precision and durability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Unilok Female Connector - Alloy 400, 1/4 Tube Fitting x 3/8-18 FNPT
$29.99
Quantity: 1
Claim Your Seller Account
Unilok Female Connector - Alloy 400, 1/4 Tube Fitting x 3/8-18 FNPT
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Unilok Female Connector is precision-engineered for seamless tubing connections in demanding environments. Crafted from durable Alloy 400, this connector ensures corrosion resistance and long-term reliability. With a 1/4 inch Tube Fitting on one end and a 3/8-18 FNPT on the other, it guarantees a secure and leak-free connection. Its straight shape and compact dimensions make it ideal for instrumentation applications, offering superior performance under high pressure. Trust Unilok for quality, durability, and compliance with institutional procurement standards.
Product Specifications

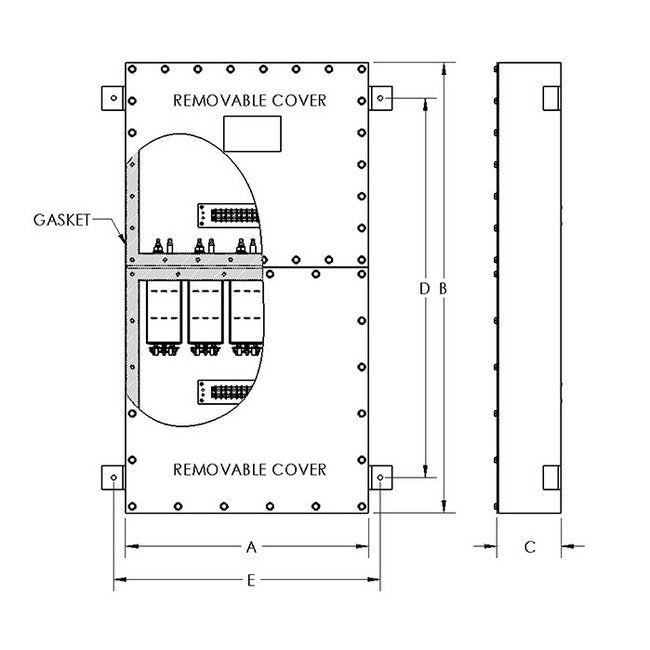

Dimensions Dimension A
37.0 in
Dimensions Dimension B
26.0 in
Dimensions Dimension C
13.25 in
Dimensions Dimension D
20.0 in
Dimensions Dimension E
39.0 in
Enclosure Enclosure
Modified NEMA 1 type enclosureStainless Steel constructionEpoxy paint optionalShielding Effectiveness on protected side greater than 100 dB up to 10 GHzSupplied with push pin terminal blocks or screw type terminal blocks Alternate mounting availableCaptor can supply just the cabinet or the cabinet with various filter inserts installed in accordance with your requirements
Filter Options Filter Options
Captor offers multiple filter inserts designed to meet MIL-188-125 HEMP requirementsA-10358, A-10366 are 2.00" x 3.00" filter inserts that will fit into the C-10431 cabinet
Note Note
Specifications subject to change.
Specifications Application
For Use with 2.00" x 3.00" Filter Inserts
Specifications Enclosure Standards
NEMA 1
Specifications Estimated Empty Cabinet Weight
95 lb
Specifications Maximum Number Of 2 Circuit Filter Inserts
50
