The Unilok Female Connector in Alloy 400 is a precision-crafted tube fitting designed for industrial applications. Featuring a 3/8-inch tube fitting connection on one end and a 1/4-inch FNPT connection on the other, this straight-shaped connector ensures secure and leak-free connections. With dimensions meeting industry standards, including a durable construction and precise engineering, this Unilok Female Connector is ideal for instrumentation setups requiring reliable performance.
Product Specifications

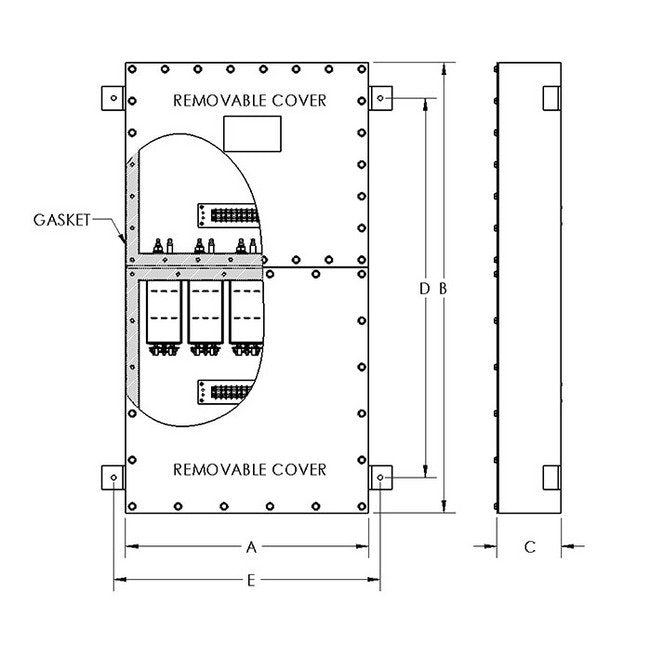

Dimensions Dimension A
42.0 in
Dimensions Dimension B
28.0 in
Dimensions Dimension C
20.5 in
Dimensions Dimension D
22.0 in
Dimensions Dimension E
44.0 in
Enclosure Enclosure
Modified NEMA 1 type enclosureStainless Steel constructionEpoxy paint optionalShielding Effectiveness on protected side greater than 100 dB up to 10 GHzSupplied with push pin terminal blocks or screw type terminal blocks Alternate mounting availableCaptor can supply just the cabinet or the cabinet with various filter inserts installed in accordance with your requirements
Filter Options Filter Options
Captor offers multiple filter inserts designed to meet MIL-188-125 HEMP requirementsA-10357, A-10362, A-10365 and A-10370 are 1.50" x 2.50" filter inserts that will fit into the C-10430 cabinet
Note Note
Specifications subject to change.
Specifications Application
For Use with 1.50" x 2.50" Filter Inserts
Specifications Enclosure Standards
NEMA 1
Specifications Estimated Empty Cabinet Weight
150 lb
Specifications Maximum Number Of 2 Circuit Filter Inserts
100
