Unilok Female Connector - Alloy 400 TF x FNPT 1"
Unilok Female Connector - Alloy 400 TF x FNPT 1"
SKU:HEM-ed1ce0
Premium Unilok Female Connector - High-Quality Alloy 400 Material, 1" TF x FNPT, Ideal for Industrial Use
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Unilok Female Connector - Alloy 400 TF x FNPT 1"
$45.99
Quantity: 1
Claim Your Seller Account
Unilok Female Connector - Alloy 400 TF x FNPT 1"
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Unilok Female Connector in Alloy 400 is a high-quality instrumentation tube fitting designed for durability and reliability. With a 1" Tube Fitting x 1-11 1/2 FNPT connection, it ensures a secure and leak-free joint. Its straight shape and precise dimensions make it ideal for various industrial applications. Crafted with premium materials, it offers corrosion resistance and long-lasting performance, meeting the stringent standards of institutional and government procurement requirements.
Product Specifications
Chassis Material Chassis Material
Cold Rolled Steel (CRS)
Chassis Material Chassis Material Thickness
20 gauge
Features Features
Inductive Input.Individually Filtered Lines.Standard Performance and High Performance Insertion Loss Versions.Captor can Supply Enclosures Holding Multiple Filters.Field Replaceable HEMP Protection Module.Custom Options Available.

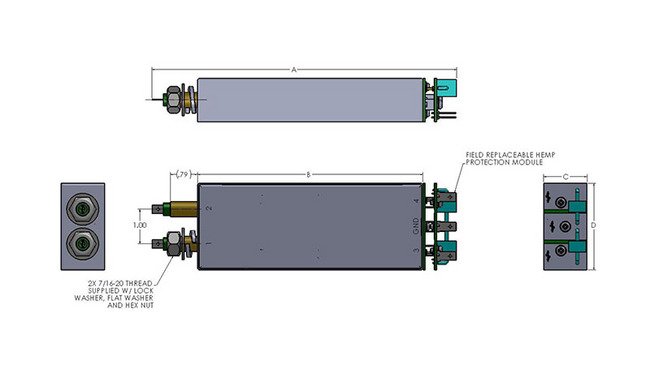

Major Dimensions Major Dimension A
8.40 in
Major Dimensions Major Dimension B
6.00 in
Major Dimensions Major Dimension C
2.00 in
Major Dimensions Major Dimension D
3.00 in
Note Note
For compliance to E2 (intermediate pulse) add an "A" to the end of the part number (A-10356A).
Specifications Capacitance
Per MIL-STD-202, Method 305 @ 1 kHz
Specifications Chassis Terminal Finish
Electro Tin-Lead
Specifications Compliance
MIL-STD-188-125-1 | MIL-STD-188-125-2
Specifications Current
5 A
Specifications Dielectric Withstanding Voltage
Per MIL-PRF-15733, Paragraph 4.6.5 with HEMP Protection Module Removed
Specifications Frequency
0 to 60 Hz
Specifications High Altitude Electromagnetic Pulse Hemp Residual
< 0.1 A

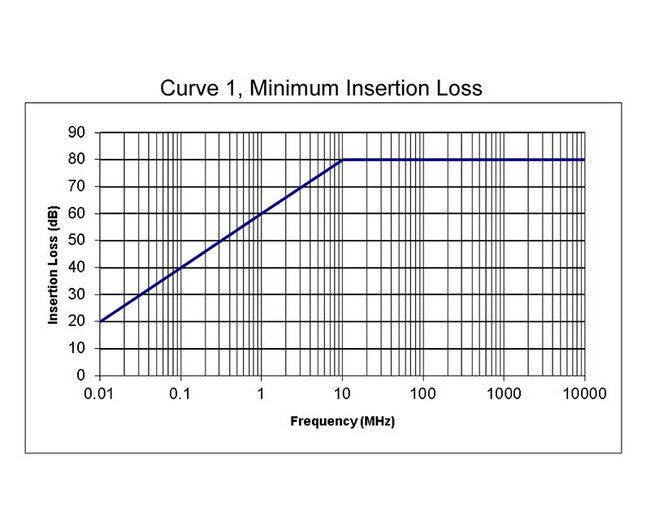

Specifications Insertion Loss Curve
Curve 1, Minimum Insertion Loss
Specifications Insulation Resistance
Per MIL-PRF-15733, Paragraph 4.6.7 with HEMP Protection Module Removed
Specifications Minimum Insertion Loss
20 dB @ 10 kHz | 40 dB @ 100 kHz | 60 dB @ 1 MHz | 80 dB @ 10 MHz to 10 GHz
Specifications Operating Temperature
-55 to +71 ºC
Specifications Quick Connect Tab Terminals
1/4 in
Specifications Standard Insertion Loss
Per MIL-STD-220, 20 dB @ 10 kHz, 80 dB @ 10 MHz to 10 GHz
Specifications Storage Temperature
-55 to +105 ºC
Specifications Terminal Strength
Per MIL-PRF-15733, Paragraph 4.6.11
Specifications Visualmechanical
Per MIL-PRF-15733, Paragraph 4.6.1
Specifications Voltage Discharge
Discharge to less than 30 Volts within 2 seconds after removal of power
Specifications Voltage Rating Dc
48 V @ 0 to 60 Hz
