Unilok Female Connector - Alloy C-276, 1in Tube Fitting x 1-11 1/2 FNPT
Unilok Female Connector - Alloy C-276, 1in Tube Fitting x 1-11 1/2 FNPT
SKU:HEM-0eda8a
Reliable Unilok Female Connector - Alloy C-276, 1in Tube Fitting x 1-11 1/2 FNPT for secure fluid connections. Compliant with industry standards.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Unilok Female Connector - Alloy C-276, 1in Tube Fitting x 1-11 1/2 FNPT
$45.99
Quantity: 1
Claim Your Seller Account
Unilok Female Connector - Alloy C-276, 1in Tube Fitting x 1-11 1/2 FNPT
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your fluid connections with the Unilok Female Connector made from high-quality Alloy C-276. This straight-shaped connector features a 1-inch tube fitting and 1-11 1/2 FNPT, ensuring secure and leak-free connections. With precise dimensions and durable construction, this connector is ideal for instrumentation purposes where reliability is paramount. Compliant with industry standards, it meets the rigorous requirements of federal procurement guidelines, making it a trusted choice for institutional applications.
Product Specifications

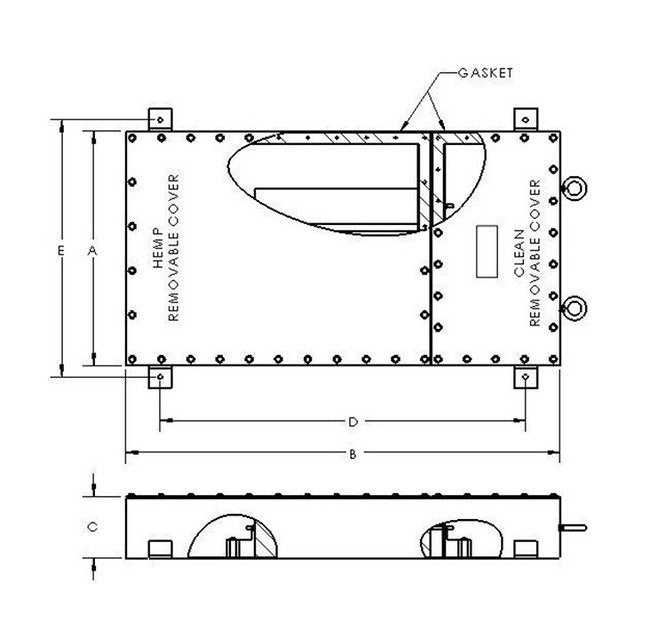

Dimensions Dimension A
14.0 in
Dimensions Dimension B
46.0 in
Dimensions Dimension C
9.0 in
Dimensions Dimension D
40.0 in
Dimensions Dimension E
16.0 in
Enclosure Enclosure
Modified NEMA 1 type enclosureCabinets: Stainless steel constructionStand alone filters and inserts: Cold rolled steel construction with a corrosion resistant platingEpoxy paint optionalShielding effectiveness on clean side greater than 100 dB from 14 kHz to 10 GHzDual removable access covers.
Features Features
Inductive inputIndividually Filtered LinesSurge arrestors V481BA60 includedCustom options available
Note Note
Specifications subject to change.
Specifications Compliance
MIL-STD-188-125-1 | MIL-STD-188-125-2
Specifications Current
60 A
Specifications Dielectric Withstanding Voltage
2250 VDC Line-to-Chassis Per MIL-STD-202, Method 301 Prior to Surge Arrestor and Discharge Resistor Installation
Specifications Estimated Weight
180 lb
Specifications Frequency
60 Hz
Specifications High Altitude Electromagnetic Pulse Hemp Complian
Per MIL-STD-188-125-1 and MIL-STD-188-125-2 as Power Line (Intrasite) Point of Entry Filter for Short (E1) and Intermediate (E2) Pulses.
Specifications Insertion Loss Curve
Curve 2, High Performance Minimum Insertion Loss
Specifications Insulation Resistance
Per MIL-PRF-15733, prior to discharge resistor installation.
Specifications Leakage Current
< 10% of Rated Current 10 through 150 Amperes, < 1 Amp for 5 Amp Filters
Specifications Minimum Insertion Loss
100 dB @ 14 kHz to 10 GHz
Specifications Number Of Circuits
2
Specifications Operating Temperature
-40 to +65 °C
Specifications Storage Temperature
-55 to +105 °C
Specifications Voltage Discharge
Discharge to Less than 30 Volts within 30 s After Removal of Power
Specifications Voltage Drop
Less than 1% of rated voltage per paragraph 4.6.8 of MIL-PRF-15733
Specifications Voltage Rating Ac
277 V | 480 V
