Unilok Female Connector C-276, 3/8 TF x 1/2-14 FNPT
Unilok Female Connector C-276, 3/8 TF x 1/2-14 FNPT
SKU:HEM-67712d
Premium Unilok Female Connector in Alloy C-276, 3/8 TF x 1/2-14 FNPT - Ensures leak-free connections with precision design.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Unilok Female Connector C-276, 3/8 TF x 1/2-14 FNPT
$49.99
Quantity: 1
Claim Your Seller Account
Unilok Female Connector C-276, 3/8 TF x 1/2-14 FNPT
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Unilok Female Connector in Alloy C-276 offers a reliable tube fitting solution for connecting 3/8-inch tubes to 1/2-14 FNPT interfaces. With precision engineering and a straight shape design, this connector ensures a secure and leak-free connection. Compliant with industry standards, it provides durability and performance for both consumer and institutional applications.
Product Specifications
Chassis Material Chassis Material
Cold Rolled Steel (CRS)
Chassis Material Chassis Material Thickness
20 gauge
Features Features

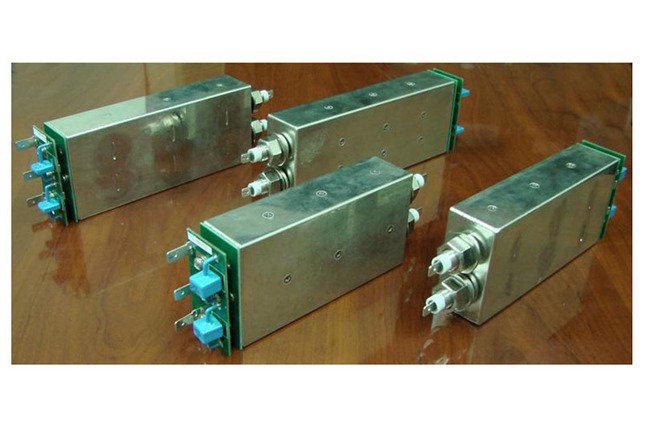

Inductive Input.Individually Filtered Lines.Standard Performance and High Performance Insertion Loss Versions.Captor can Supply Enclosures Holding Multiple Filters.Field Replaceable HEMP Protection Module.Custom Options Available.

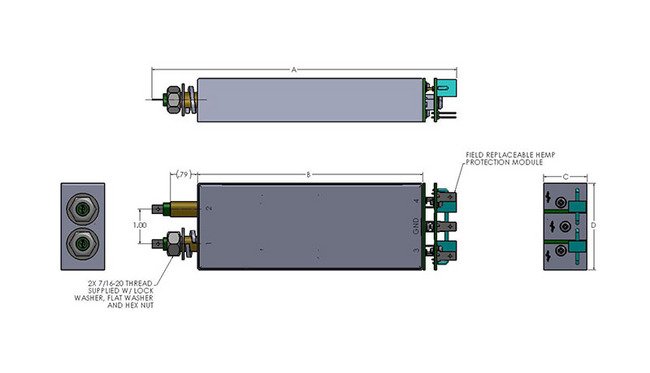

Major Dimensions Major Dimension A
10.40 in
Major Dimensions Major Dimension B
8.00 in
Major Dimensions Major Dimension C
1.50 in
Major Dimensions Major Dimension D
2.50 in
Note Note
For compliance to E2 (intermediate pulse) add an "A" to the end of the part number (A-10356A)For 120 VAC units only, compliance to E2 increases overall dimension "A" by 2.5 inches.
Specifications Capacitance
Per MIL-STD-202, Method 305 @ 1 kHz
Specifications Chassis Terminal Finish
Electro Tin-Lead
Specifications Compliance
MIL-STD-188-125-1 | MIL-STD-188-125-2
Specifications Current
5 A
Specifications Dielectric Withstanding Voltage
Per MIL-PRF-15733, Paragraph 4.6.5 with HEMP Protection Module Removed
Specifications Frequency
0 to 60 Hz
Specifications High Altitude Electromagnetic Pulse Hemp Residual
< 1 A

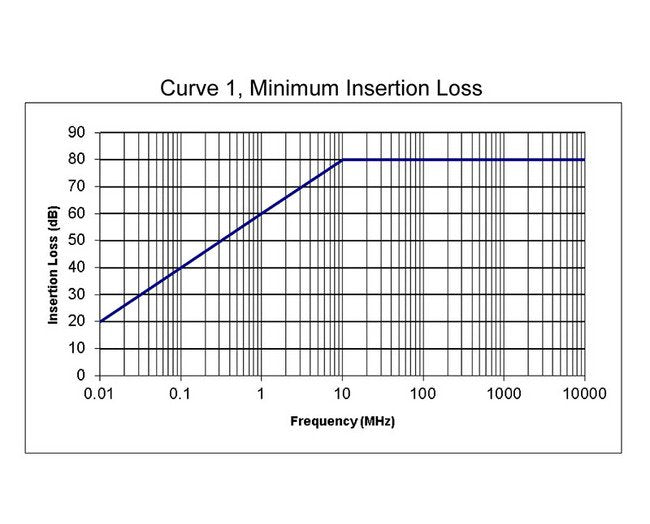

Specifications Insertion Loss Curve
Curve 1, Minimum Insertion Loss
Specifications Insulation Resistance
Per MIL-PRF-15733, Paragraph 4.6.7 with HEMP Protection Module Removed
Specifications Minimum Insertion Loss
20 dB @ 10 kHz | 40 dB @ 100 kHz | 60 dB @ 1 MHz | 80 dB @ 10 MHz to 10 GHz
Specifications Operating Temperature
-55 to +71 ºC
Specifications Quick Connect Tab Terminals
1/4 in
Specifications Standard Insertion Loss
Per MIL-STD-220, 20 dB @ 10 kHz, 80 dB @ 10 MHz to 10 GHz
Specifications Storage Temperature
-55 to +105 ºC
Specifications Terminal Strength
Per MIL-PRF-15733, Paragraph 4.6.11
Specifications Visualmechanical
Per MIL-PRF-15733, Paragraph 4.6.1
Specifications Voltage Discharge
Discharge to less than 30 Volts within 2 seconds after removal of power
Specifications Voltage Rating Ac
120 V @ 0 to 60 Hz
