Unilok Female Connector - C-276 Alloy, 3/8 TF x 1/8 FNPT
Unilok Female Connector - C-276 Alloy, 3/8 TF x 1/8 FNPT
SKU:HEM-8d6473
Premium Unilok Female Connector - C-276 Alloy, 3/8 TF x 1/8 FNPT - Ideal for industrial use
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Unilok Female Connector - C-276 Alloy, 3/8 TF x 1/8 FNPT
$39.99
Quantity: 1
Claim Your Seller Account
Unilok Female Connector - C-276 Alloy, 3/8 TF x 1/8 FNPT
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Unilok Female Connector in Alloy C-276 is a top-of-the-line tube fitting designed for precision and durability. With a 3/8-inch Tube Fitting x 1/8-27 FNPT connection setup, this connector ensures a secure and leak-free joint. Its straight shape, precise dimensions, and corrosion-resistant material make it ideal for demanding industrial applications. Trust the Unilok brand for reliability and performance in instrumentation tube fittings.
Product Specifications
Chassis Material Chassis Material
Cold Rolled Steel (CRS)
Chassis Material Chassis Material Thickness
20 gauge
Features Features

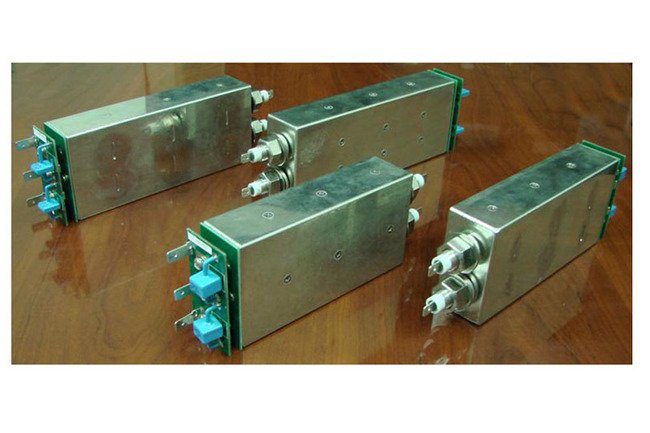

Inductive Input.Individually Filtered Lines.Standard Performance and High Performance Insertion Loss Versions.Captor can Supply Enclosures Holding Multiple Filters.Field Replaceable HEMP Protection Module.Custom Options Available.

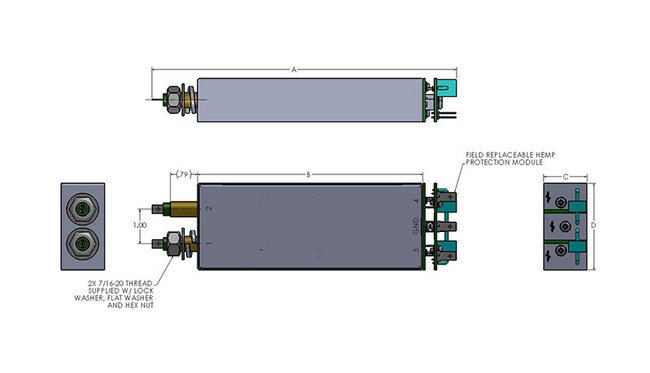

Major Dimensions Major Dimension A
11.40 in
Major Dimensions Major Dimension B
9.00 in
Major Dimensions Major Dimension C
1.50 in
Major Dimensions Major Dimension D
2.50 in
Note Note
For compliance to E2 (intermediate pulse) add an "A" to the end of the part number (A-10356A)For 120 VAC units only, compliance to E2 increases overall dimension "A" by 2.5 inches.
Specifications Capacitance
Per MIL-STD-202, Method 305 @ 1 kHz
Specifications Chassis Terminal Finish
Electro Tin-Lead
Specifications Compliance
MIL-STD-188-125-1 | MIL-STD-188-125-2
Specifications Current
5 A
Specifications Dielectric Withstanding Voltage
Per MIL-PRF-15733, Paragraph 4.6.5 with HEMP Protection Module Removed
Specifications Frequency
0 to 60 Hz
Specifications High Altitude Electromagnetic Pulse Hemp Residual
< 1 A
Specifications High Performance Insertion Loss
Per MIL-STD-220, 100 dB @ 14 kHz to 10 GHz

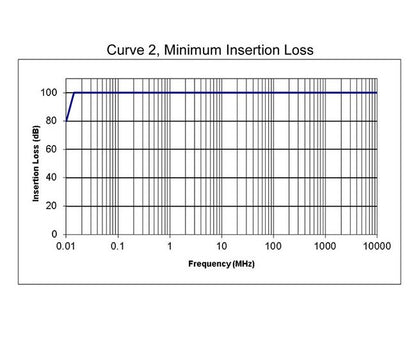

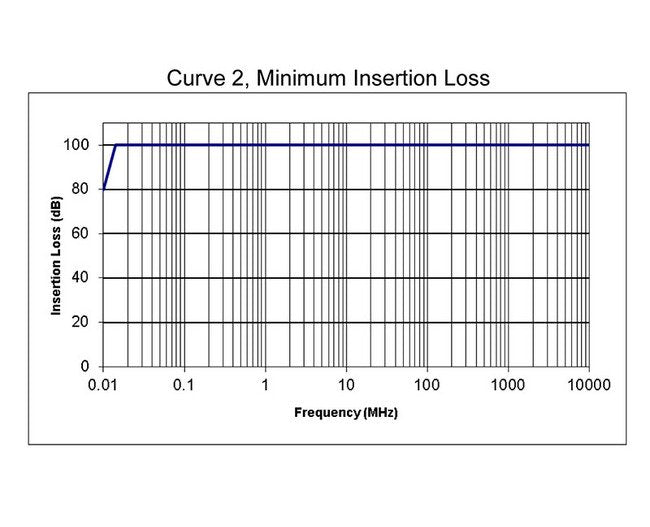

Specifications Insertion Loss Curve
Curve 2, Minimum Insertion Loss
Specifications Insulation Resistance
Per MIL-PRF-15733, Paragraph 4.6.7 with HEMP Protection Module Removed
Specifications Minimum Insertion Loss
100 dB @ 14 kHz to 10 GHz
Specifications Operating Temperature
-55 to +71 ºC
Specifications Quick Connect Tab Terminals
1/4 in
Specifications Storage Temperature
-55 to +105 ºC
Specifications Terminal Strength
Per MIL-PRF-15733, Paragraph 4.6.11
Specifications Visualmechanical
Per MIL-PRF-15733, Paragraph 4.6.1
Specifications Voltage Discharge
Discharge to less than 30 Volts within 2 seconds after removal of power
Specifications Voltage Rating Ac
120 V
