Unilok Male Connector 1/16 Tube Fitting x 1/8-27 MNPT 316 SS
Unilok Male Connector 1/16 Tube Fitting x 1/8-27 MNPT 316 SS
SKU:SHI-6a2a89
Enhance system performance with Unilok Male Connector - precision-engineered, 316 SS, TF x MNPT connections.
Regular price
$16.12
Regular price
Sale price
$16.12
Unit price
per
Initiate Order
Unilok Male Connector 1/16 Tube Fitting x 1/8-27 MNPT 316 SS
$16.12
Quantity: 1
Claim Your Seller Account
Unilok Male Connector 1/16 Tube Fitting x 1/8-27 MNPT 316 SS
$16.12
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid systems with the precision-engineered Unilok Male Connector. Made of durable 316 stainless steel, this straight tube fitting features a 1/16-inch TF and 1/8-inch MNPT connections, ensuring a secure and leak-free installation. With compact dimensions and corrosion resistance, it meets the highest industry standards for instrumentation tube fittings.
Product Specifications
Enclosure Enclosure
Modified: NEMA 1 type enclosureCabinet Material: Stainless Steel constructionFilter insert case material: Cold rolled steel construction with a corrosion resistant platingEpoxy paint optionalShielding effectiveness measured on clean side greater than 100 dB from 14 KHz or 100 KHz to 10 GHzDual removable access covers
Note Note
When installed with best grounding practice, additional shielding and Isolation between input and output compartmentsSpecifications subject to changeCabinet Supplied with Filter Inserts, 50 to 800 Amps 2, 3 and 4 Power Line filters Installed

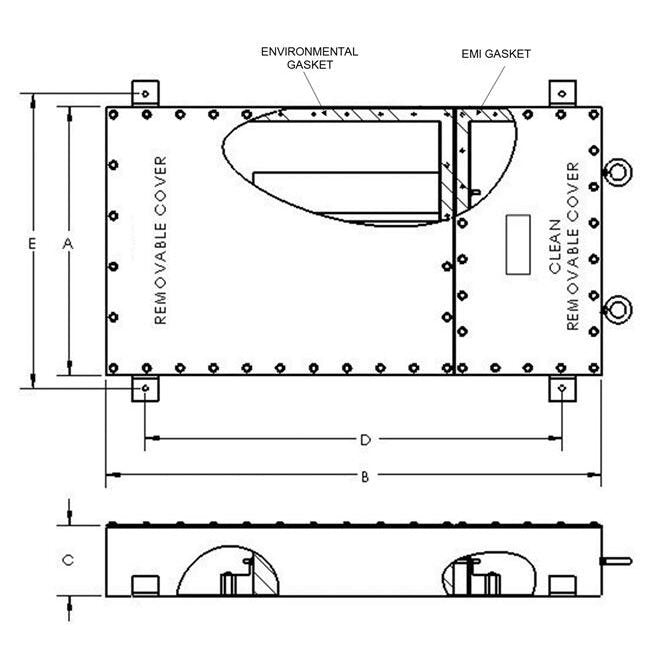

Size Size A
35.0 in
Size Size B
46.0 in
Size Size C
12.0 in
Size Size D
26.0 in
Size Size E
37.0 in
Specifications Alternating Current Ac Voltage At 60 Hertz Hz
270 V | 480 V
Specifications Current Rating
300 A
Specifications Dielectric Withstanding Voltage
2250 VDC line-to-chassis per MIL-STD-202, Method 301 prior to installation of discharge resistor
Specifications Estimated Weight
850 lb
Specifications Filter Type
Standard Performance Filter

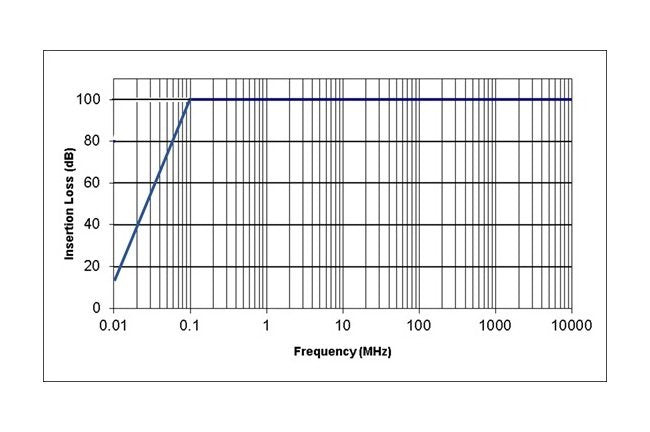

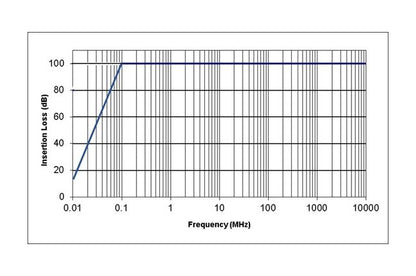

Specifications Insertion Loss
Measured per MIL-STD-220
Specifications Insulation Resistance
Per MIL-PRF-15733, prior to discharge resistor installation.
Specifications Number Of Lines
3
Specifications Operating Temperature
-40 to +65 ºC
Specifications Storage Temperature
-55 to +105 ºC
Specifications Voltage Discharge
Discharge to less than 30 Volts within 30s after removal of power
Specifications Voltage Drop
Less than 1% of rated voltage per paragraph 4.6.8 of MIL-PRF-15733
