Unilok Male Connector 1/4 Tube Fitting x 1/16 MNPT Brass
Unilok Male Connector 1/4 Tube Fitting x 1/16 MNPT Brass
SKU:SHI-6a9f03
Durable Unilok Male Connector for secure brass tube-to-MNPT connections in high-pressure instrumentation systems.
Regular price
$5.17
Regular price
Sale price
$5.17
Unit price
per
Initiate Order
Unilok Male Connector 1/4 Tube Fitting x 1/16 MNPT Brass
$5.17
Quantity: 1
Claim Your Seller Account
Unilok Male Connector 1/4 Tube Fitting x 1/16 MNPT Brass
$5.17
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Unilok Male Connector features a durable brass body with a 1/4 inch tube fitting on one end and a 1/16 inch MNPT connection on the other. It is designed with precision to ensure a secure and leak-free connection, suitable for high-pressure instrumentation tube systems. The straight shape and compact dimensions make installation easy and efficient, meeting the demands of industrial applications. Trust in the Unilok brand's quality and performance for reliable connections in your fluid system.
Product Specifications
Enclosure Enclosure
Modified: NEMA 1 type enclosureCabinet Material: Stainless Steel constructionFilter insert case material: Cold rolled steel construction with a corrosion resistant platingEpoxy paint optionalShielding effectiveness measured on clean side greater than 100 dB from 14 KHz or 100 KHz to 10 GHzDual removable access covers
Note Note
Two A-11035-4 cabinets (two 400 A filter lines connected in parallel for each phase) for a total of four 800 A lines.When installed with best grounding practice, additional shielding and Isolation between input and output compartmentsSpecifications subject to changeCabinet Supplied with Filter Inserts, 50 to 800 Amps 2, 3 and 4 Power Line filters Installed

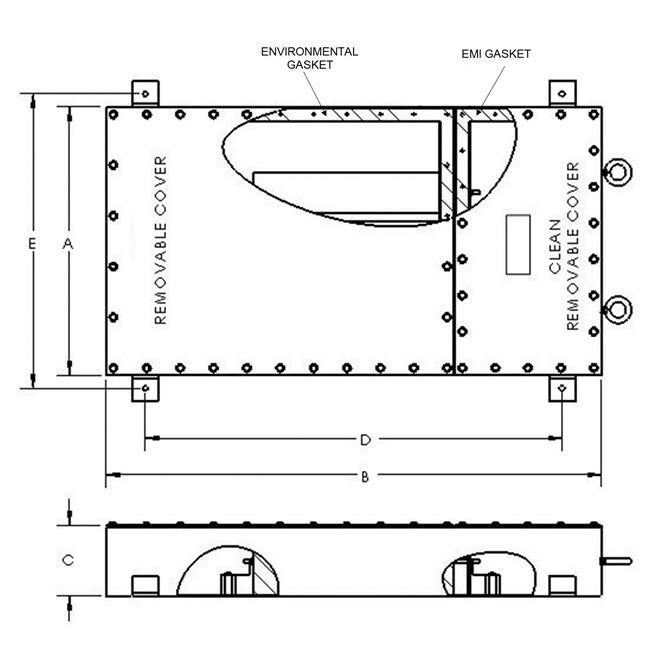

Size Size A
2 x 50.0 in
Size Size B
60.0 in
Size Size C
12.0 in
Size Size D
40.0 in
Size Size E
2 x 52.0 in
Specifications Alternating Current Ac Voltage At 60 Hertz Hz
270 V | 480 V
Specifications Current Rating
800 A
Specifications Dielectric Withstanding Voltage
2250 VDC line-to-chassis per MIL-STD-202, Method 301 prior to installation of discharge resistor
Specifications Estimated Weight
3700 lb
Specifications Filter Type
High Performance Filter

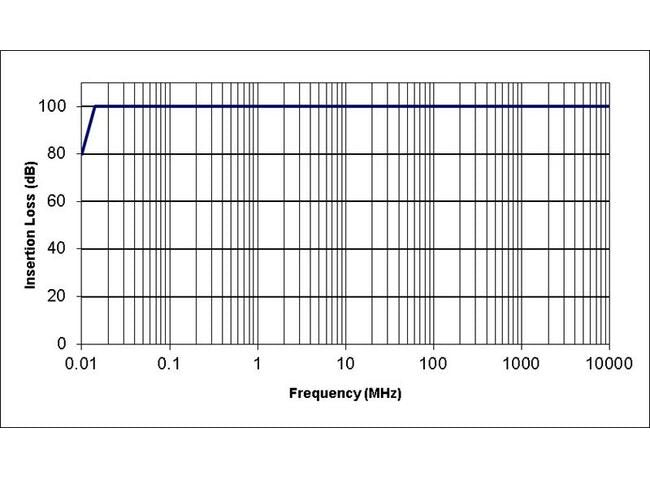

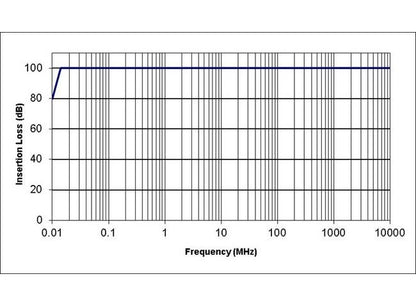

Specifications Insertion Loss
Measured per MIL-STD-220
Specifications Insulation Resistance
Per MIL-PRF-15733, prior to discharge resistor installation.
Specifications Number Of Lines
4
Specifications Operating Temperature
-40 to +65 ºC
Specifications Storage Temperature
-55 to +105 ºC
Specifications Voltage Discharge
Discharge to less than 30 Volts within 30s after removal of power
Specifications Voltage Drop
Less than 1% of rated voltage per paragraph 4.6.8 of MIL-PRF-15733
