Unilok Male Connector - 316 SS, TF x 3/4-14 MNPT, 1"
Unilok Male Connector - 316 SS, TF x 3/4-14 MNPT, 1"
SKU:SHI-fff6df
Premium Unilok Male Connector - 316 SS, TF x 3/4-14 MNPT, 1" for reliable instrumentation connections.
Regular price
$65.27
Regular price
Sale price
$65.27
Unit price
per
Initiate Order
Unilok Male Connector - 316 SS, TF x 3/4-14 MNPT, 1"
$65.27
Quantity: 1
Claim Your Seller Account
Unilok Male Connector - 316 SS, TF x 3/4-14 MNPT, 1"
$65.27
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Unilok Male Connector is a precision-engineered tube fitting designed for seamless connections in instrumentation systems. Crafted from high-grade 316 SS, this straight-shaped connector ensures durability and corrosion resistance. With a 1" TF x 3/4-14 MNPT configuration, it offers a secure and leak-free interface, meeting stringent industry standards for reliability and performance.
Product Specifications
Enclosure Enclosure
Modified: NEMA 1 type enclosureCabinet Material: Stainless Steel constructionFilter insert case material: Cold rolled steel construction with a corrosion resistant platingEpoxy paint optionalShielding effectiveness measured on clean side greater than 100 dB from 14 KHz or 100 KHz to 10 GHzDual removable access covers
Note Note
Two A-11042-4 cabinets (two 400 A filter lines connected in parallel for each phase) for a total of four 800 A lines.When installed with best grounding practice, additional shielding and Isolation between input and output compartmentsSpecifications subject to changeCabinet Supplied with Filter Inserts, 50 to 800 Amps 2, 3 and 4 Power Line filters Installed

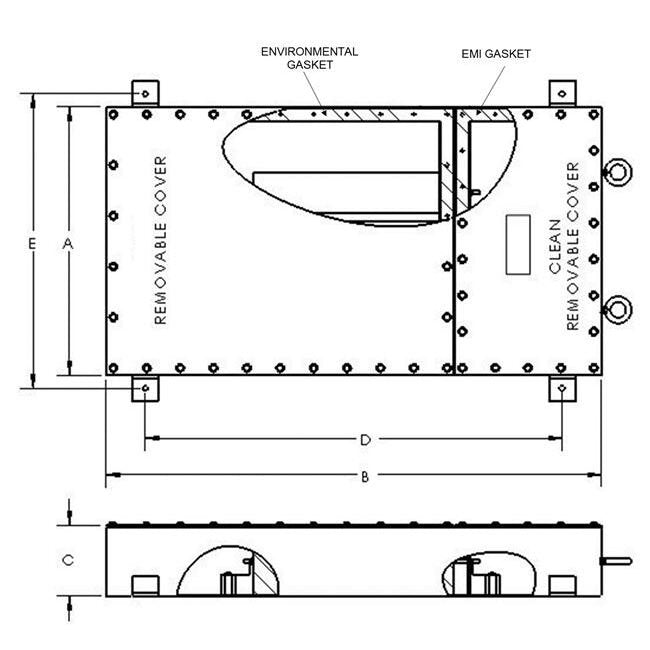

Size Size A
2 x 46.0 in
Size Size B
46.0 in
Size Size C
12.0 in
Size Size D
26.0 in
Size Size E
2 x 48.0 in
Specifications Alternating Current Ac Voltage At 60 Hertz Hz
270 V | 480 V
Specifications Current Rating
800 A
Specifications Dielectric Withstanding Voltage
2250 VDC line-to-chassis per MIL-STD-202, Method 301 prior to installation of discharge resistor
Specifications Estimated Weight
2250 lb
Specifications Filter Type
Standard Performance Filter

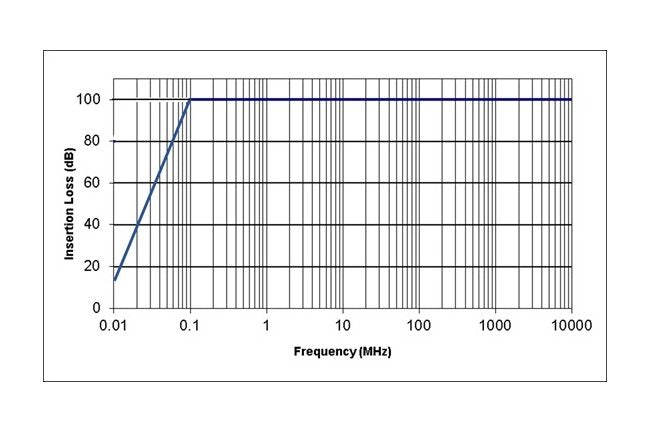

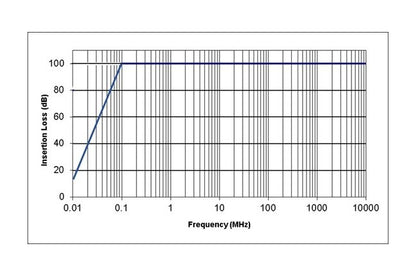

Specifications Insertion Loss
Measured per MIL-STD-220
Specifications Insulation Resistance
Per MIL-PRF-15733, prior to discharge resistor installation.
Specifications Number Of Lines
4
Specifications Operating Temperature
-40 to +65 ºC
Specifications Storage Temperature
-55 to +105 ºC
Specifications Voltage Discharge
Discharge to less than 30 Volts within 30s after removal of power
Specifications Voltage Drop
Less than 1% of rated voltage per paragraph 4.6.8 of MIL-PRF-15733
