Unilok Male Connector - Brass, 1/16 Tube Fitting x 1/16 MNPT
Unilok Male Connector - Brass, 1/16 Tube Fitting x 1/16 MNPT
SKU:SHI-8bc181
Premium Unilok Male Connector - Brass construction, precise dimensions, reliable performance
Regular price
$6.82
Regular price
Sale price
$6.82
Unit price
per
Initiate Order
Unilok Male Connector - Brass, 1/16 Tube Fitting x 1/16 MNPT
$6.82
Quantity: 1
Claim Your Seller Account
Unilok Male Connector - Brass, 1/16 Tube Fitting x 1/16 MNPT
$6.82
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Unilok Male Connector is a premium brass fitting designed for precision and durability. This straight connector features a 1/16 Tube Fitting x 1/16 MNPT connection, ensuring a secure fit for various instrumentation applications. With precise dimensions meeting industry standards, this connector offers reliable performance and easy installation. Trust the Unilok Male Connector for quality and efficiency in your fluid system setups.
Product Specifications
Enclosure Enclosure
Modified: NEMA 1 type enclosureCabinet Material: Stainless Steel constructionFilter insert case material: Cold rolled steel construction with a corrosion resistant platingEpoxy paint optionalShielding effectiveness measured on clean side greater than 100 dB from 14 KHz or 100 KHz to 10 GHzDual removable access covers
Note Note
When installed with best grounding practice, additional shielding and Isolation between input and output compartmentsSpecifications subject to changeCabinet Supplied with Filter Inserts, 50 to 800 Amps 2, 3 and 4 Power Line filters Installed

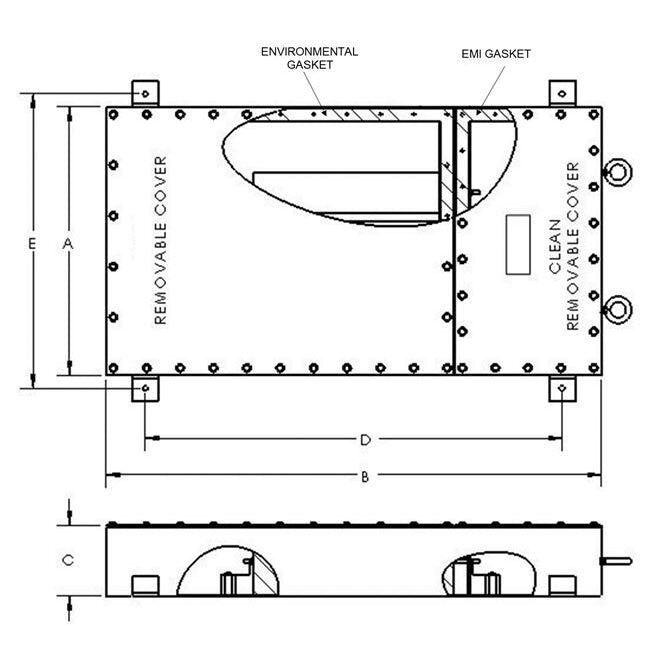

Size Size A
33.0 in
Size Size B
34.0 in
Size Size C
7.0 in
Size Size D
24.0 in
Size Size E
34.0 in
Specifications Alternating Current Ac Voltage At 60 Hertz Hz
270 V | 480 V
Specifications Current Rating
150 A
Specifications Dielectric Withstanding Voltage
2250 VDC line-to-chassis per MIL-STD-202, Method 301 prior to installation of discharge resistor
Specifications Estimated Weight
375 lb
Specifications Filter Type
High Performance Filter

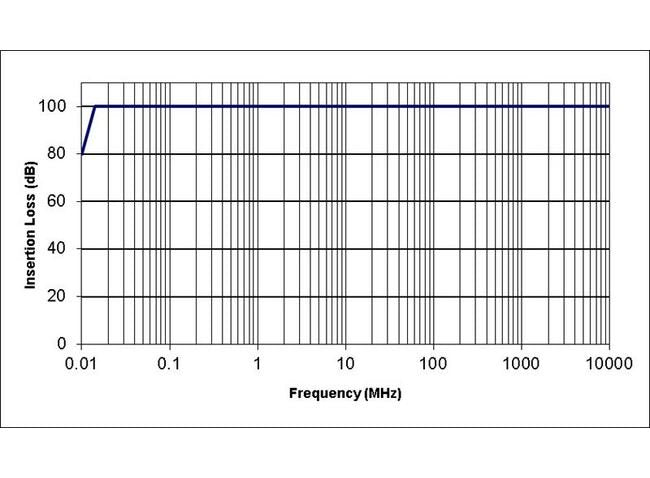

Specifications Insertion Loss
Measured per MIL-STD-220
Specifications Insulation Resistance
Per MIL-PRF-15733, prior to discharge resistor installation.
Specifications Number Of Lines
4
Specifications Operating Temperature
-40 to +65 ºC
Specifications Storage Temperature
-55 to +105 ºC
Specifications Voltage Discharge
Discharge to less than 30 Volts within 30s after removal of power
Specifications Voltage Drop
Less than 1% of rated voltage per paragraph 4.6.8 of MIL-PRF-15733
