Unilok Reducing Union - 5/8 to 3/8 Tube Fitting, 316 SS
Unilok Reducing Union - 5/8 to 3/8 Tube Fitting, 316 SS
SKU:CYL-5e3b07
Premium Unilok Reducing Union for 5/8 to 3/8 Tube Fitting, 316 SS - Ensures secure leak-free connections in instrumentation applications.
Regular price
$45.42
Regular price
Sale price
$45.42
Unit price
per
Initiate Order
Unilok Reducing Union - 5/8 to 3/8 Tube Fitting, 316 SS
$45.42
Quantity: 1
Claim Your Seller Account
Unilok Reducing Union - 5/8 to 3/8 Tube Fitting, 316 SS
$45.42
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Unilok Reducing Union is a high-quality 316 SS tube fitting designed for seamless connectivity in instrumentation applications. This straight reducing union ensures a secure and leak-free connection between 5/8-inch and 3/8-inch tube fittings. With precise dimensions and durable construction, this fitting guarantees optimal performance and longevity even under high-pressure conditions. Ideal for industrial settings requiring reliable tube fittings that meet stringent quality and performance standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Filter Circuit And Application Information Filter Circuit And Ap
Three different types of filter circuits are shown in this series; L, Pi and T; each with its own characteristics An analysis of each application by engineering personnel will indicate a preferred circuit from cost, performance and size considerations, as directed below: Features: L - Least expensive but most effective with high impedance noise sources.Pi - Often used in line filters when source and load impedance are not known but can increase unfiltered interference in control circuits or switch circuits.T - Reduces line noise level best in low impedance applications but most expensive.L filters provide significant insertion loss because of the impedance mismatch created when the capacitor end of the filter is mounted towards the high impedance noise source (load) and the inductor end is mounted towards the low impedance line.Pi filters usually provide maximum "dB per dollar" in a matched 50 ohm system, but many times are less effective under actual operating or test conditions. They are particularly suspect in installations involving switching transients, since they can in some instances increase the interference problem rather than correct it.The T circuit is used primarily with switching circuits. It reduces noise level on the system lines, causes no deterioration in the life of switching contacts, and in some instances actually prolongs switch contacts life.The successful operation of any high frequency filter depends on adequate bonding and good RF isolation between input and output. The filter must be bonded to same potential as one side of the RF noise source being filtered. The performance of the filter can be completely masked by ineffective bonding or poor RF isolation between input and output circuits. The RF filter uses the case as common ground for the internal capacitor and cannot provide its total performance if RF is permitted to bypass the filters by means of coupling between input and output circuits.If you have any questions about the circuit to be employed, please call our engineering department for application advice and information.

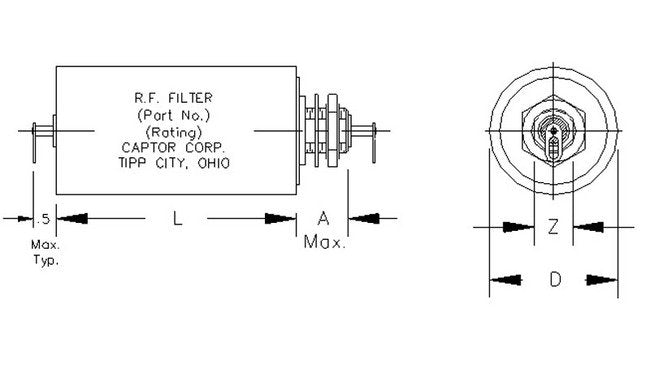

Specifications Body D
1.25 in
Specifications Body L
2.87 in
Specifications Ckt
Pi
Specifications Current Rating
2 A
Specifications Insertion Loss 015 Mhz
60
Specifications Terminal Dimensions A
0.50 in
Specifications Terminal Dimensions Thread
7/16-20
Specifications Terminal Dimensions Z
0.370 in
Specifications Voltage Ac
250 V
Specifications Voltage Dc
600 V
