Union Tee Fitting - 18mm to 10mm Reducing Connector
Union Tee Fitting - 18mm to 10mm Reducing Connector
SKU:SRU-ce307c
Discover efficiency and safety with our SRUTI Series Union Tee Fitting - the ideal solution for metric tube connections.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Union Tee Fitting - 18mm to 10mm Reducing Connector
$39.99
Quantity: 1
Claim Your Seller Account
Union Tee Fitting - 18mm to 10mm Reducing Connector
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SRUTI Series 18mm to 10mm Reducing Union Tee Fitting is engineered for seamless metric tube connections. Crafted from a range of high-quality materials like Alloy 625 and Stainless Steel, this fitting features i-Fitting® components including a check ring for precise compression, ensuring optimum safety, productivity, and cost-efficiency. Perfect for high-pressure and hazardous chemical environments, this patented design by BMT revolutionizes industry standards, offering reliability and ease of installation.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

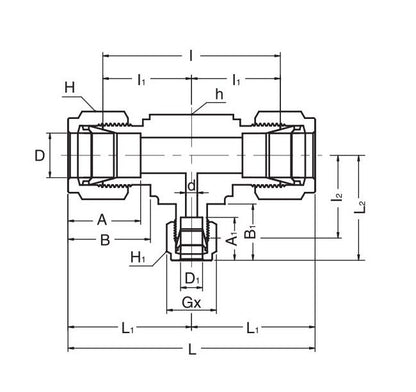

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
24.8 mm
Technical Specs Dimension A1
17.5 mm
Technical Specs Dimension B
22.5 mm
Technical Specs Dimension B1
19.8 mm
Technical Specs Dimension I
59.4 mm
Technical Specs Dimension I1
29.7 mm
Technical Specs Dimension I2
29.7 mm
Technical Specs Dimension L
81.7 mm
Technical Specs Dimension L1
40.3 mm
Technical Specs Dimension L2
37.6 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
7.9 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
18 mm
Technical Specs Tube Outside Diameter D1
10 mm
Technical Specs Width Across Flat H
30 mm
Technical Specs Width Across Flat H1
19 mm
