Union Unilok 316 SS Tube Fitting
Union Unilok 316 SS Tube Fitting
SKU:TEM-c6120c
High-quality 316 SS Tube Fitting for precise and durable tube connections. Ideal for instrumentation with leak-free performance.
Regular price
$15.85
Regular price
Sale price
$15.85
Unit price
per
Initiate Order
Union Unilok 316 SS Tube Fitting
$15.85
Quantity: 1
Claim Your Seller Account
Union Unilok 316 SS Tube Fitting
$15.85
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Union Unilok 316 SS Tube Fitting offers precision engineering for seamless tube connections. Crafted from high-quality 316 Stainless Steel, it ensures durability and corrosion resistance. With a straight shape and 1/8 inch connections, this fitting is ideal for instrumentation applications. The Unilok series guarantees leak-free performance, making it a reliable choice for industrial settings. Compliant with industry standards, this fitting meets the stringent requirements of government and institutional procurement.
Product Specifications
Chassis Material Chassis Material
Cold Rolled Steel (CRS)
Chassis Material Chassis Terminal Finish
Electro Tin-Lead
Features Features
Individually Filtered Lines.High Performance TEMPEST Filters.Alternate Mounting Means Available.Captor can Supply Enclosure Housing with Multiple Filters.Custom Options Available.

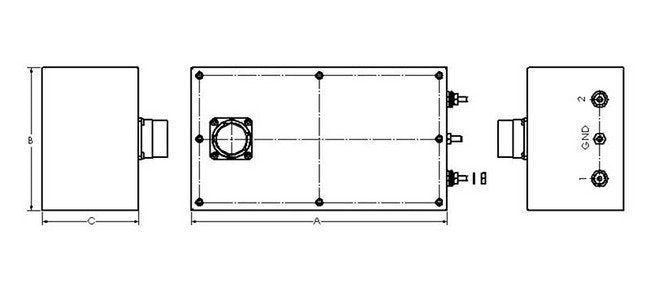

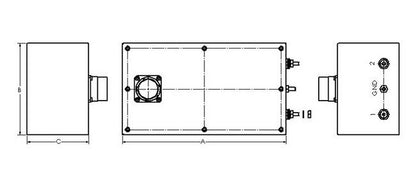

Major Dimensions Major Dimension A
8.00 in
Major Dimensions Major Dimension B
4.50 in
Major Dimensions Major Dimension C
3.00 in
Note Note
Specifications subject to change.
Specifications Capacitance
Per MIL-STD-202, Method 305 @ 1 kHz
Specifications Current
10 A
Specifications Dielectric Withstanding Voltage
800 VDC line-to-line & line-to-chassis per MIL-STD-202, Method 301
Specifications Frequency
0 to 60 Hz
Specifications Input Connection
D38999/20WE6PN
Specifications Insertion Loss
Per MIL-STD-220, 100 dB @ 14 kHz to 10 GHz

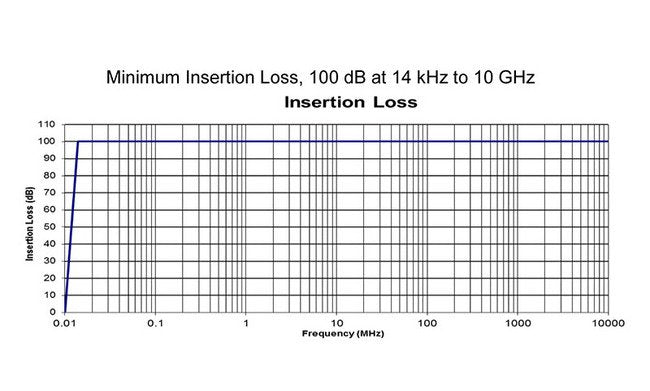

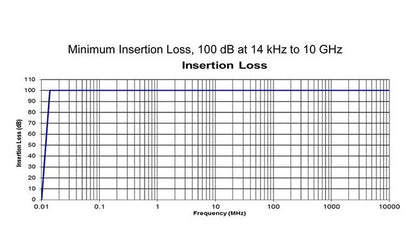

Specifications Insertion Loss Curve
Minimum Insertion Loss Curve, 100 dB at 14 kHz to 10 GHz
Specifications Insulation Resistance
1500 MΩ minimum per MIL-STD-202, Method 302
Specifications Leakage Current
< 1.6 A
Specifications Operating Temperature
-55 to +71 ºC
Specifications Output Connection
8-32 Stud Assemblies
Specifications Storage Temperature
-55 to +105 ºC
Specifications Terminal Strength
Per MIL-PRF-15733, Paragraph 4.6.11
Specifications Threaded Inserts
8-32 UNC-2B
Specifications Threaded Terminals
8-32 UNC-2A
Specifications Visualmechanical
Per MIL-PRF-15733, Paragraph 4.6.1
Specifications Voltage Discharge
Discharge to Less than 30 Volts within 30 s After Removal of Power
Specifications Voltage Drop
Less than 1% of rated voltage per paragraph 4.6.8 of MIL-PRF-15733
Specifications Voltage Rating Ac
120 V @ 0 to 60 Hz | 250 V @ 0 to 60 Hz
