The Union - Unilok Tube Fitting Set features high-quality Alloy C-276 material and precise 1/4 inch connections, suitable for instrumentation applications. With a straight shape and durable construction, these fittings ensure reliable performance and leak-free connections. Compliant with federal procurement standards and industry certifications, they meet the demanding requirements of government and institutional buyers.
Product Specifications
Chassis Material Chassis Material
Cold Rolled Steel (CRS)
Chassis Material Chassis Terminal Finish
Electro Tin-Lead
Features Features
Individually Filtered Lines.High Performance TEMPEST Filters.Alternate Mounting Means Available.Captor can Supply Enclosure Housing with Multiple Filters.Custom Options Available.
Major Dimensions Major Dimension A
14.25 in
Major Dimensions Major Dimension B
4.00 in
Major Dimensions Major Dimension C
2.5 in
Note Note

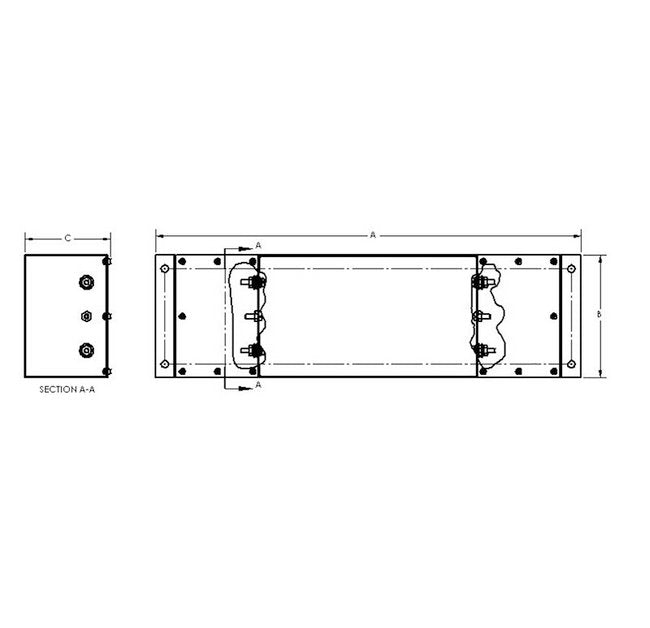

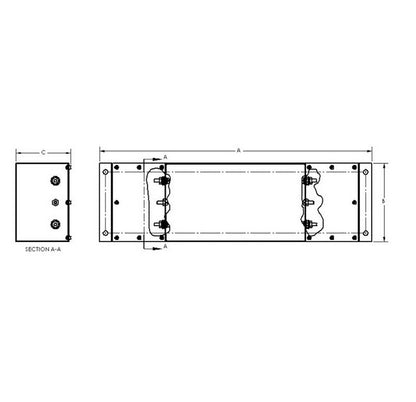

For Dimensional Drawing: Knock outs can be added per customer requests.Specifications subject to change.
Specifications Capacitance
Per MIL-STD-202, Method 305 @ 1 kHz
Specifications Current
2.5 A
Specifications Dielectric Withstanding Voltage
800 VDC line-to-line & line-to-chassis per MIL-STD-202, Method 301
Specifications Frequency
0 to 60 Hz
Specifications Input Connection
8-32 Stud Assemblies
Specifications Insertion Loss
Per MIL-STD-220, 100 dB @ 14 kHz to 10 GHz
Specifications Insertion Loss Curve

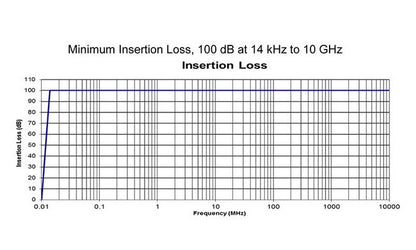

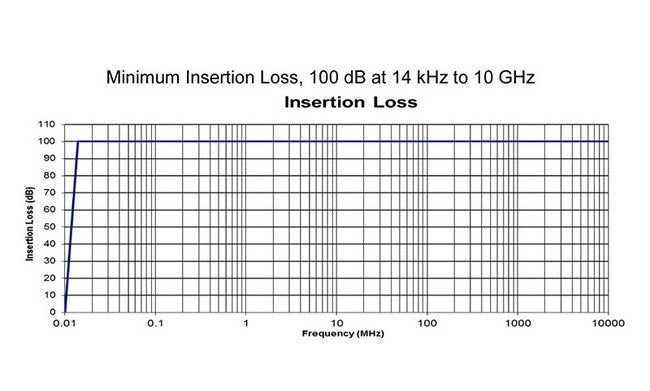

Minimum Insertion Loss Curve, 100 dB at 14 kHz to 10 GHz
Specifications Insulation Resistance
1500 MΩ minimum per MIL-STD-202, Method 302
Specifications Leakage Current
< 0.45 A
Specifications Operating Temperature
-55 to +71 ºC
Specifications Output Connection
8-32 Stud Assemblies
Specifications Storage Temperature
-55 to +105 ºC
Specifications Terminal Strength
Per MIL-PRF-15733, Paragraph 4.6.11
Specifications Threaded Inserts
8-32 UNC-2B
Specifications Threaded Terminals
8-32 UNC-2A
Specifications Visualmechanical
Per MIL-PRF-15733, Paragraph 4.6.1
Specifications Voltage Discharge
Discharge to Less than 30 Volts within 30 s After Removal of Power
Specifications Voltage Drop
Less than 1% of rated voltage per paragraph 4.6.8 of MIL-PRF-15733
Specifications Voltage Rating Ac
120 V @ 0 to 60 Hz | 250 V @ 0 to 60 Hz
