Union - Unilok Brass Straight Tube Fitting 1/2 in x 1/2 in
Union - Unilok Brass Straight Tube Fitting 1/2 in x 1/2 in
SKU:TEM-bc67a0
High-quality Union - Unilok Brass Straight Tube Fitting, ensures secure leak-free connections, ideal for instrumentation systems.
Regular price
$14.30
Regular price
Sale price
$14.30
Unit price
per
Initiate Order
Union - Unilok Brass Straight Tube Fitting 1/2 in x 1/2 in
$14.30
Quantity: 1
Claim Your Seller Account
Union - Unilok Brass Straight Tube Fitting 1/2 in x 1/2 in
$14.30
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Union - Unilok Brass Straight Tube Fitting is expertly crafted for secure and leak-free connections in instrumentation systems. Made of high-quality brass, this fitting ensures durability and resistance to corrosion, meeting stringent industry standards. With precise dimensions and a seamless design, it offers reliable performance in a wide range of applications, making it an ideal choice for both consumer and institutional buyers.
Product Specifications
Chassis Material Chassis Material
Cold Rolled Steel (CRS)
Chassis Material Chassis Terminal Finish
Electro Tin-Lead
Features Features
Individually Filtered Lines.High Performance TEMPEST Filters.Alternate Mounting Means Available.Captor can Supply Enclosure Housing with Multiple Filters.Custom Options Available.

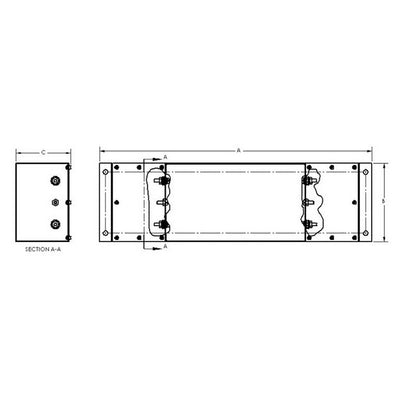

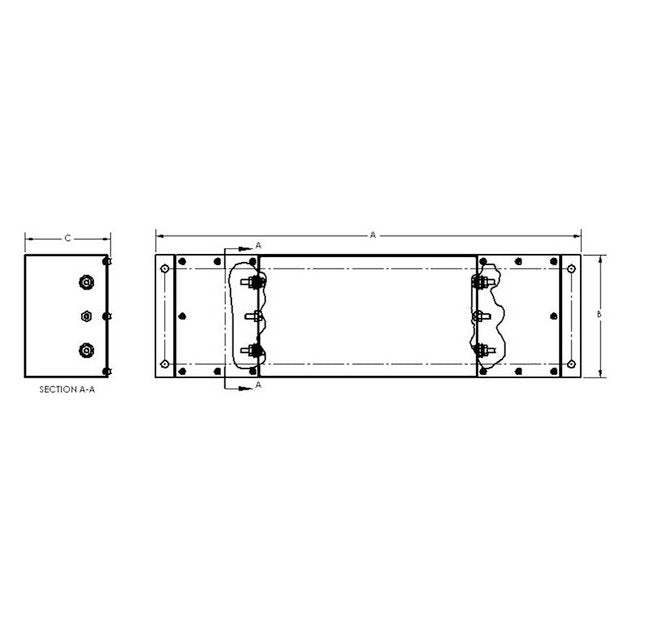

Major Dimensions Major Dimension A
18.00 in
Major Dimensions Major Dimension B
6.00 in
Major Dimensions Major Dimension C
4.2 in
Note Note
For Dimensional Drawing: Knock outs can be added per customer requests.Specifications subject to change.
Specifications Capacitance
Per MIL-STD-202, Method 305 @ 1 kHz
Specifications Current
20 A
Specifications Dielectric Withstanding Voltage
800 VDC line-to-line & line-to-chassis per MIL-STD-202, Method 301
Specifications Frequency
0 to 60 Hz
Specifications Input Connection
8-32 Stud Assemblies
Specifications Insertion Loss
Per MIL-STD-220, 100 dB @ 14 kHz to 10 GHz

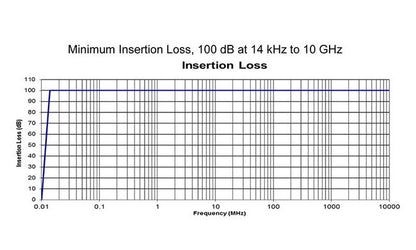

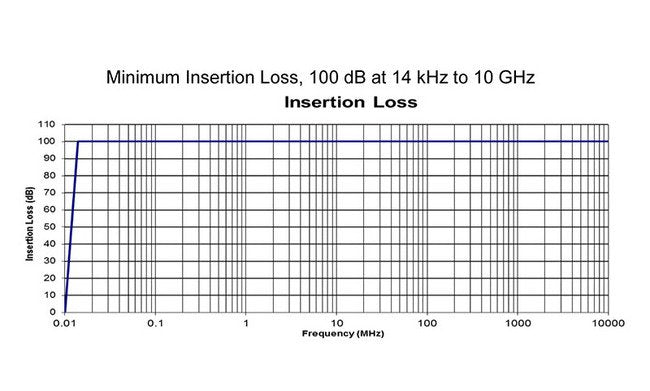

Specifications Insertion Loss Curve
Minimum Insertion Loss Curve, 100 dB at 14 kHz to 10 GHz
Specifications Insulation Resistance
1500 MΩ minimum per MIL-STD-202, Method 302
Specifications Leakage Current
< 2.8 A
Specifications Operating Temperature
-55 to +71 ºC
Specifications Output Connection
8-32 Stud Assemblies
Specifications Storage Temperature
-55 to +105 ºC
Specifications Terminal Strength
Per MIL-PRF-15733, Paragraph 4.6.11
Specifications Threaded Inserts
8-32 UNC-2B
Specifications Threaded Terminals
8-32 UNC-2A
Specifications Visualmechanical
Per MIL-PRF-15733, Paragraph 4.6.1
Specifications Voltage Discharge
Discharge to Less than 30 Volts within 30 s After Removal of Power
Specifications Voltage Drop
Less than 1% of rated voltage per paragraph 4.6.8 of MIL-PRF-15733
Specifications Voltage Rating Ac
120 V @ 0 to 60 Hz | 250 V @ 0 to 60 Hz
