Union - Unilok Brass Tube Fitting 1/4 x 1/4
Union - Unilok Brass Tube Fitting 1/4 x 1/4
SKU:TEM-5d527a
Premium Union - Unilok Brass Tube Fitting, 1/4 x 1/4, for secure and reliable tube connections in instrumentation applications.
Regular price
$6.82
Regular price
Sale price
$6.82
Unit price
per
Initiate Order
Union - Unilok Brass Tube Fitting 1/4 x 1/4
$6.82
Quantity: 1
Claim Your Seller Account
Union - Unilok Brass Tube Fitting 1/4 x 1/4
$6.82
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Union - Unilok Brass Tube Fitting is a high-quality 1/4 inch fitting designed for instrumentation applications. Made of durable brass, this fitting ensures a secure connection between tubes, meeting strict industry standards for reliability and performance. Its straight shape and precise dimensions make installation easy and efficient, suitable for both consumer and institutional usage.
Product Specifications
Chassis Material Chassis Material
Cold Rolled Steel (CRS)
Chassis Material Chassis Terminal Finish
Electro Tin-Lead
Features Features
Individually Filtered Lines.High Performance TEMPEST Filters.Alternate Mounting Means Available.Captor can Supply Enclosure Housing with Multiple Filters.Custom Options Available.

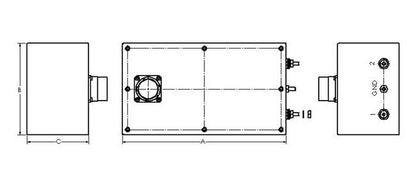

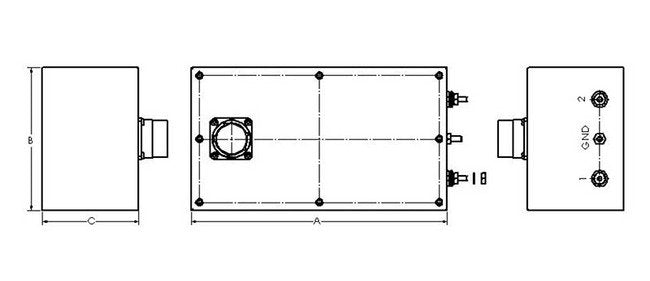

Major Dimensions Major Dimension A
6.75 in
Major Dimensions Major Dimension B
4.00 in
Major Dimensions Major Dimension C
2.25 in
Note Note
Specifications subject to change.
Specifications Capacitance
Per MIL-STD-202, Method 305 @ 1 kHz
Specifications Current
5 A
Specifications Dielectric Withstanding Voltage
800 VDC line-to-line & line-to-chassis per MIL-STD-202, Method 301
Specifications Frequency
0 to 60 Hz
Specifications Input Connection
D38999/20WE6PN
Specifications Insertion Loss
Per MIL-STD-220, 100 dB @ 14 kHz to 10 GHz
Specifications Insertion Loss Curve
Minimum Insertion Loss Curve, 100 dB at 14 kHz to 10 GHz
Specifications Insulation Resistance
1500 MΩ minimum per MIL-STD-202, Method 302
Specifications Leakage Current
< 0.9 A
Specifications Operating Temperature
-55 to +71 ºC
Specifications Output Connection
8-32 Stud Assemblies
Specifications Storage Temperature
-55 to +105 ºC
Specifications Terminal Strength
Per MIL-PRF-15733, Paragraph 4.6.11
Specifications Threaded Inserts
8-32 UNC-2B
Specifications Threaded Terminals
8-32 UNC-2A
Specifications Visualmechanical
Per MIL-PRF-15733, Paragraph 4.6.1
Specifications Voltage Discharge
Discharge to Less than 30 Volts within 30 s After Removal of Power
Specifications Voltage Drop
Less than 1% of rated voltage per paragraph 4.6.8 of MIL-PRF-15733
Specifications Voltage Rating Ac
120 V @ 0 to 60 Hz | 250 V @ 0 to 60 Hz
