Union - Unilok Brass Tube Fitting, 5/8 inch x 5/8 inch
Union - Unilok Brass Tube Fitting, 5/8 inch x 5/8 inch
SKU:TEM-a6e0ec
Premium Union - Unilok Brass Tube Fitting for 5/8'' tubing, ensures secure and leak-free connections in instrumentation applications.
Regular price
$18.64
Regular price
Sale price
$18.64
Unit price
per
Initiate Order
Union - Unilok Brass Tube Fitting, 5/8 inch x 5/8 inch
$18.64
Quantity: 1
Claim Your Seller Account
Union - Unilok Brass Tube Fitting, 5/8 inch x 5/8 inch
$18.64
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Union - Unilok Brass Tube Fitting is a reliable and durable solution for connecting 5/8 inch tubing in instrumentation applications. Made of high-quality brass, this fitting ensures a secure and leak-free connection. With precise dimensions and a straight shape design, it offers easy installation and compatibility. The Unilok series guarantees premium performance, making it ideal for industrial, government, and institutional settings requiring top-notch fittings that meet stringent standards.
Product Specifications
Insertion Loss Curve Insertion Loss Curve
Insertion Loss Curve Figure 5
Note Note
J1 is connector part number D38999/20WE6PN.
Specifications Capacitance
Per MIL-STD-202, Method 305 @ 1 kHz
Specifications Current Rating
2.5 A
Specifications Dielectric Withstanding Voltage
1000 VDC line-to-line & line-to-chassis per MIL-STD-202, Method 301

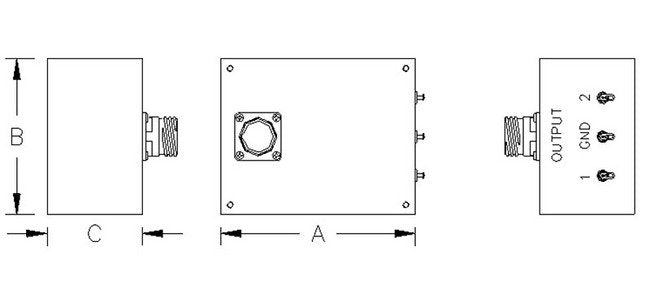

Specifications Dimension A
4.25 in
Specifications Dimension B
3.25 in
Specifications Dimension C
2.00 in
Specifications Fig
2
Specifications Input Connection
J1
Specifications Insertion Loss
Per MIL-STD 220
Specifications Insulation Resistance
1500 MΩ minimum per MIL-STD-202, Method 302 (prior to installation of bleeder resistors)
Specifications Leakage Current
5 mA maximum, measured per UL standard 1283 at 120 VAC, 60 Hz
Specifications Operating Temperature
-55 to +71 ºC
Specifications Output Connection
Solder Terminals
Specifications Terminal Strength
Per MIL-STD-202, method 211
Specifications Visualmechanical
Per MIL-F-15733, Paragraph 4.6.1
Specifications Voltage Discharge
Unit shall discharge to less than 30 VDC after removal or power
Specifications Voltage Drop
Less than 1% of rated voltage per paragraph 4.6.8 of MIL-F-15733
Specifications Voltage Rating
120/230 VAC @ 60 Hz
