Universal 115V Chassis Mount Power Transformer
Universal 115V Chassis Mount Power Transformer
SKU:POW-5d5768
Enhance circuit performance with the Universal 115V Chassis Mount Power Transformer. Ideal for stable DC voltage supply in various applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Universal 115V Chassis Mount Power Transformer
$49.99
Quantity: 1
Claim Your Seller Account
Universal 115V Chassis Mount Power Transformer
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Universal 115V Chassis Mount Power Transformer from the Series F-90 line by Triad is a robust solution designed for maximum performance in full wave center tap or bridge type circuits with silicon or selenium rectifiers. Featuring primary voltage of 115V and versatile secondary voltage options ranging from 10-40 CT, 14-40 FWCT, to 7-30 FWB, this transformer offers flexibility in output voltages. With a rated secondary current of 0.1A and center tap configuration, it is ideal for applications requiring stable DC voltages for transistors. The compact X case type, easy-to-install leads, and compliance with industry standards make it a reliable choice for both consumer and institutional buyers.
Product Specifications
Note Note

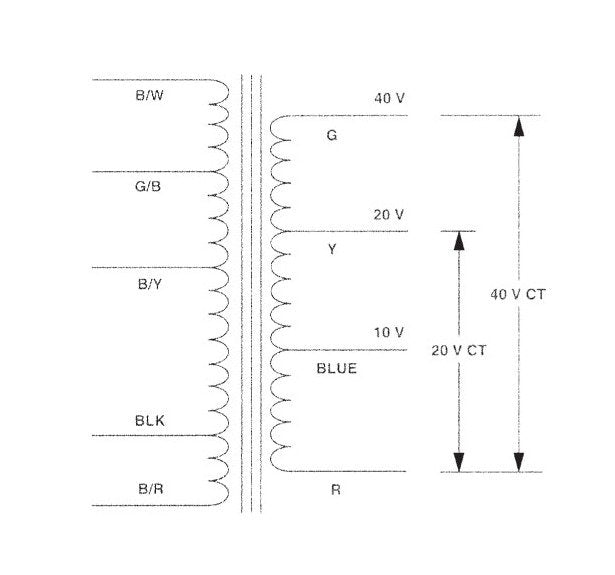

Tapped primary to produce lower voltages
Specifications Case Type
X
Specifications Connections
Leads
Specifications Depth D
1 5/8 in
Specifications Height H
1 5/8 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 3/8 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Current Dc
0.1 A

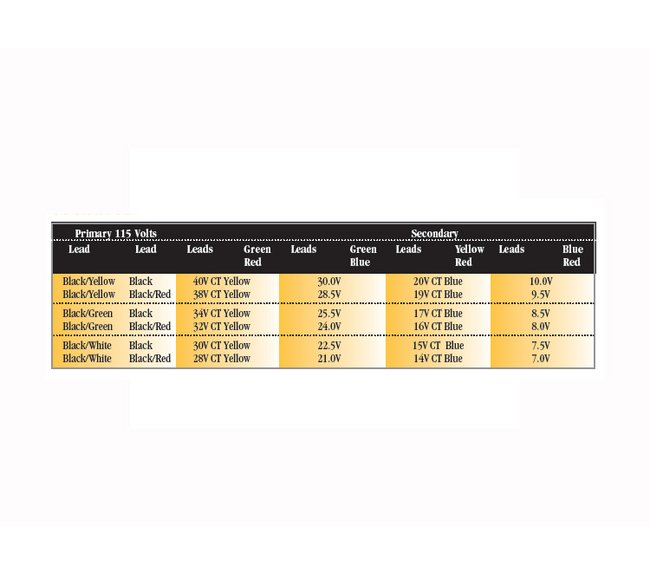

Specifications Secondary Voltage Ac
10-20 CT-40 CT | 14 to 40 (FWCT) | 7 to 30 (FWB)
Specifications Transformer Contact Type
Center Tap
Specifications Weight
0.70 lb
Specifications Width W
2 13/16 in
