Universal Beaded Coupling - 4 inch, TFE Liner, Stainless Steel Shell
Universal Beaded Coupling - 4 inch, TFE Liner, Stainless Steel Shell
SKU:BEA-a885e6
Unrivaled sealing performance with 300 series stainless steel shell and TFE liner. Ideal for high temps & deflection. Meets institutional standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Universal Beaded Coupling - 4 inch, TFE Liner, Stainless Steel Shell
$29.99
Quantity: 1
Claim Your Seller Account
Universal Beaded Coupling - 4 inch, TFE Liner, Stainless Steel Shell
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unrivaled sealing performance with our Universal Beaded Coupling. Featuring a 300 series stainless steel shell, nut, bolt, and washer, paired with an elastomer sleeve designed for temperatures up to 275°F. The virgin TFE liner ensures a reliable seal at up to 3° deflection, making it ideal for demanding applications. With an outer diameter of 5 1/2 inches and a gasket thickness of 3/16 inches, this coupling excels in durability and high-temperature environments, meeting stringent institutional procurement standards.
Product Specifications
Specifications Bolt Material
300 Series Stainless Steel

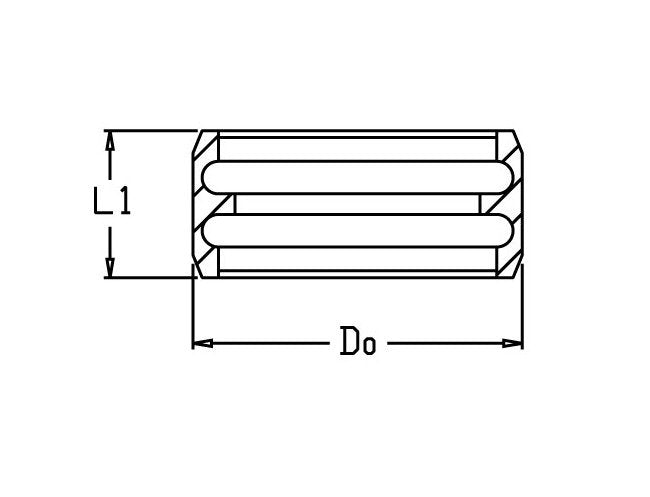

Specifications Dimension L1
1 3/4 in
Specifications Gasket Thickness
3/16 in
Specifications Liner Material
Virgin TFE
Specifications Nut Material
300 Series Stainless Steel
Specifications Outer Diameter D0
5 1/2 in
Specifications Shell Material
300 Series Stainless Steel
Specifications Size
4 in
Specifications Sleeve Material
Elastomer
Specifications Washer Material
300 Series Stainless Steel
