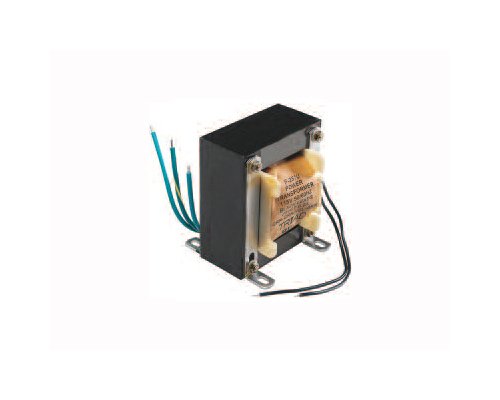

Universal Chassis Mount Power Transformer - Series F-90
Universal Chassis Mount Power Transformer - Series F-90
SKU:POW-8e3391
The versatile Series F-90 Universal Chassis Mount Power Transformer by Triad ensures reliable power conversion in diverse applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Universal Chassis Mount Power Transformer - Series F-90
$59.99
Quantity: 1
Claim Your Seller Account
Universal Chassis Mount Power Transformer - Series F-90
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Universal Chassis Mount Power Transformer from the Series F-90 line by Triad delivers exceptional performance in full wave center tap or bridge circuits with silicon or selenium rectifiers. Its primary voltage options of 115V or 230V and versatile secondary voltage range from 0 to 36V provide flexibility in selecting output voltages. Designed for use with silicon diode rectifiers, this transformer is ideal for supplying DC voltages to transistors in various applications, ensuring reliable power conversion. With a sturdy U case type, convenient leads for connections, and compact dimensions, this transformer is easy to integrate into diverse setups. Meet your power supply needs efficiently with the Series F-90 Universal Chassis Mount Power Transformer.
Product Specifications
Specifications Case Type
U
Specifications Connections
Leads
Specifications Depth D
3 1/4 in
Specifications Height H
3 3/4 in
Specifications Mounting Depth
2 5/8 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Width
2 1/2 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Current Ac
3.0 A
Specifications Secondary Voltage Ac
0 to 24/27/30/33/36 V
Specifications Weight
5.70 lb
Specifications Width W
3 1/8 in
