Universal Flat Load Cells - Dual/Single Bridge - 1,000 lb Capacity
Universal Flat Load Cells - Dual/Single Bridge - 1,000 lb Capacity
SKU:LOA-c8f0e3
Versatile load cells for tension & compression, 1,000 lb capacity, high accuracy, ASTM & NIST compliant
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Universal Flat Load Cells - Dual/Single Bridge - 1,000 lb Capacity
$499.99
Quantity: 1
Claim Your Seller Account
Universal Flat Load Cells - Dual/Single Bridge - 1,000 lb Capacity
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

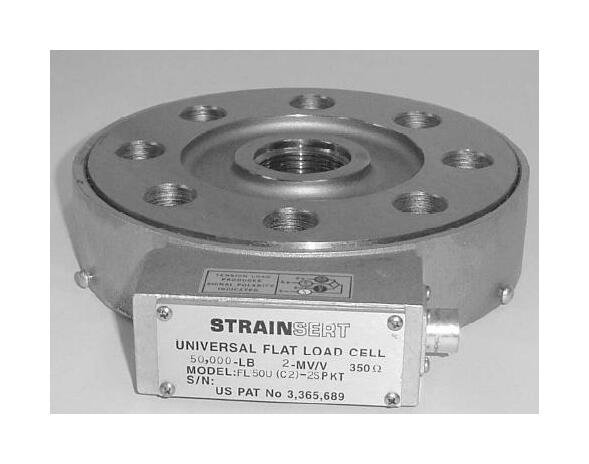

The Universal Flat Load Cells are versatile instruments designed to measure forces in both tension and compression, with a load capacity of 1,000 lbs. Featuring a low profile, rugged construction, and compact design, these load cells offer high accuracy with non-linearity of ±0.15% FS. With pressure compensating sealed strain gauges, they ensure reliable performance in various applications. Their compliance with industry standards, such as ASTM and NIST, makes them ideal for institutional and government procurement needs.
Product Specifications
Dimensional Drawing Dimensional Drawing
Universal Flat Load Cells
Electrical Specifications Cable
#20(26x34) AWG., rubber insulation, shielded, rubber jacket, 4-Conductor (Standard Cable)
Electrical Specifications Excitation
Red
Electrical Specifications Function
Wire Code
Electrical Specifications Mating Plug
PT06A-10-6S (SR)
Electrical Specifications Receptacle
PT02H-10-6P
Electrical Specifications Signal
Green
Features 0
Low Profile, Rugged, Compact & Lightweight Low Deflection High Frequency Dynamic Load Sensing Pressure Compensating Sealed Strain Gages Counterbored Mounting Holes Low Sensitivity to Extraneous Loads High Static Overload
General Information 0
Load Cells are strain gage transducers developed by Strainsert (U.S. Patent No. 3,695,096). They are manufacured utilizing the internal strain gage process perfected by Strainsert since 1960. The structure is simple and compact, consisting of an inner loading hub and an outer supporting flange bridged smoothly by a uniformly continuous solid shear web avoiding structural stress risers.Strain gages are installed and sealed inside small gage holes along the neutral axis of the web. Linearity and symmetry of output signal is obtained by equal straining of all shear gages in the bridge circuit.Low deflection and high natural frequency are obtained, along with high resistance to extraneous forces. Mechanical and dynamic properties are fully tabulated.
Mechanical Properties 0
FL1U_MP
Performance Specs Bridge Resistance
350 Ohms (Nominal)
Performance Specs Compensated Range
60 to 150 ºF
Performance Specs Effect On Output
±0.0030% Load/°F (Nominal)
Performance Specs Effect On Zero
±0.0035% FS/°F
Performance Specs Excitation Voltage
15V AC or DC (Maximum)
Performance Specs Hysteresis
General Purpose ±0.20% FS | Precision ±0.15% FS
Performance Specs Insulation Resistance
10,000 Megaohms (Minimum)
Performance Specs Non Linearity
General Purpose ±0.25% FS | Precision ±0.15% FS
Performance Specs Non Repeatability
±0.05% FS
Performance Specs Safe Static Overload Without Output Shift
200%FS
Performance Specs Safe Static Overload Without Structural Failur
250%FS
Specifications A Diameter
11/16 in
Specifications B Diameter
1-7/16 in
Specifications C Diameter
2-1/2 in
Specifications D Diameter
2-11/16 in
Specifications F Height
15/16 in
Specifications G Width
2-13/16 in
Specifications H Height
1 in
Specifications K Inside Diameter
7/32 in
Specifications K Outside Diameter
11/32 in
Specifications Lifting Holes Bc Diameter
NONE
Specifications Load Capacity
1,000 lb
Specifications L Diameter
1-15/16 in
Specifications N Depth Of Hole
5/16 in
