The Universal Load Cell Base Dimensions is a crucial accessory for precise load cell installations. With a 7-1/4 inch diameter, 2-inch height, and durable construction, it ensures stable support for load cells in diverse applications. Compliant with federal procurement standards, this base offers reliability and accuracy for institutional buyers.
Product Specifications

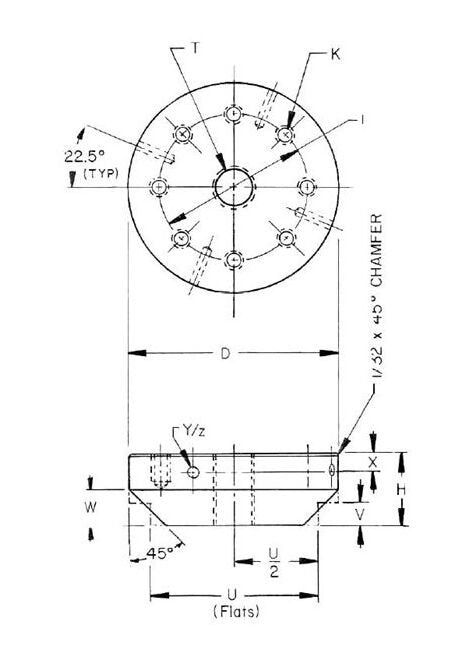

Dimensional Drawing Dimensional Drawing
Universal Load Cell Accessories
Specifications D Diameter
7-1/4 in
Specifications H Height
2 in
Specifications K Hole
1/2-20UNF-2B, 7/8â Deep
Specifications L Diameter
5-1/4 in
Specifications Number Of Holes
8
Specifications T Hole
1-1/2-12N-2B
Specifications U Flats
0 in
Specifications V Height
0 in
Specifications W Height
1 in
Specifications X Length
1/2 in
Specifications Y Diameter
3/8 in
Specifications Z Depth
1-1/2 in
