The Universal Load Cell Base Dimensions is a precision-engineered accessory designed to meet the demanding requirements of load cell installations. With a diameter of 3-3/8 inches and a sturdy construction, this base provides robust support for load cells in various settings. Featuring 8 holes for secure mounting and precise hole specifications, including 5/8-18UNF-2B and 1/4-28UNF-2B with 9/16" depth, this base ensures accurate and stable load cell placement. Ideal for standard load cell applications, this base offers reliability, durability, and compliance with industry standards.
Product Specifications

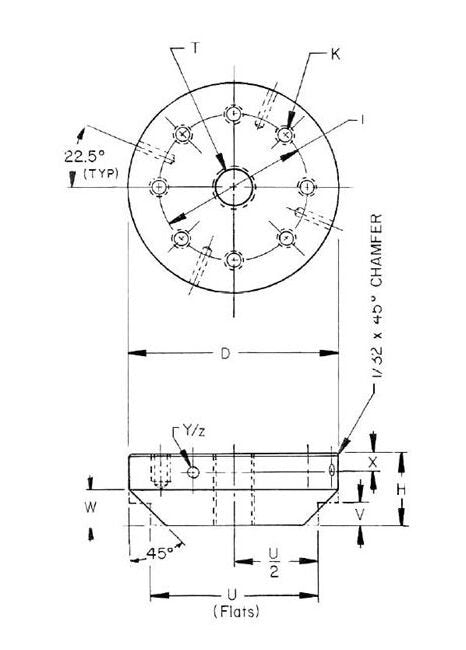

Dimensional Drawing Dimensional Drawing

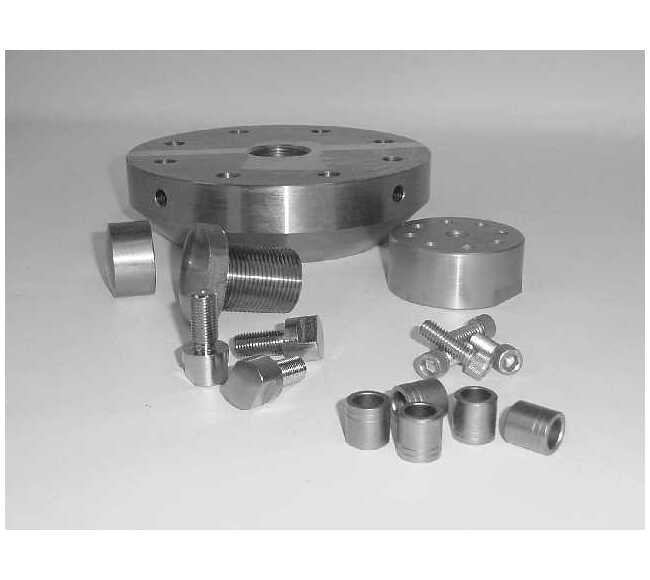

Universal Load Cell Accessories
Specifications D Diameter
3-3/8 in
Specifications H Height
1-1/4 in
Specifications K Hole
1/4-28UNF-2B, 9/16â Deep
Specifications L Diameter
2-7/16 in
Specifications Number Of Holes
8
Specifications T Hole
5/8-18UNF-2B
Specifications U Flats
3 in
Specifications V Height
3/8 in
Specifications W Height
0 in
Specifications X Length
0 in
Specifications Y Diameter
0 in
Specifications Z Depth
0 in
