Universal Load Cell Base Dimensions
Universal Load Cell Base Dimensions
SKU:LOA-4543f4
Enhance load cell performance with precision Universal Load Cell Bases. Compliant with Federal standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Universal Load Cell Base Dimensions
$29.99
Quantity: 1
Claim Your Seller Account
Universal Load Cell Base Dimensions
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Universal Load Cell Base Dimensions are precision-engineered load cell accessories designed to meet the demands of both consumer and institutional buyers. With a Diameter of 3-3/8 in, Flats of 3 in, and a Height of 1-1/4 in, these bases offer unparalleled stability and accuracy. Compliant with Federal procurement standards and equipped with 8 strategically placed holes, they ensure seamless integration for a wide range of applications.
Product Specifications

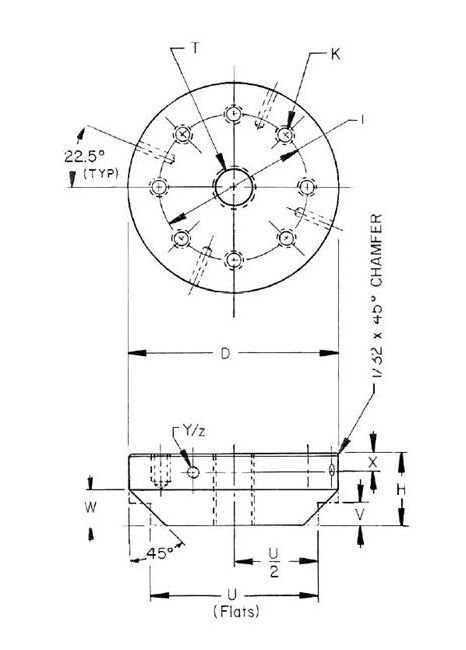

Dimensional Drawing Dimensional Drawing
Universal Load Cell Accessories
Specifications D Diameter
3-3/8 in
Specifications H Height
1-1/4 in
Specifications K Hole
1/4-28UNF-2B, 9/16â Deep
Specifications L Diameter
2-7/16 in
Specifications Number Of Holes
8
Specifications T Hole
7/16-20UNF-2B
Specifications U Flats
3 in
Specifications V Height
3/8 in
Specifications W Height
0 in
Specifications X Length
0 in
Specifications Y Diameter
0 in
Specifications Z Depth
0 in
