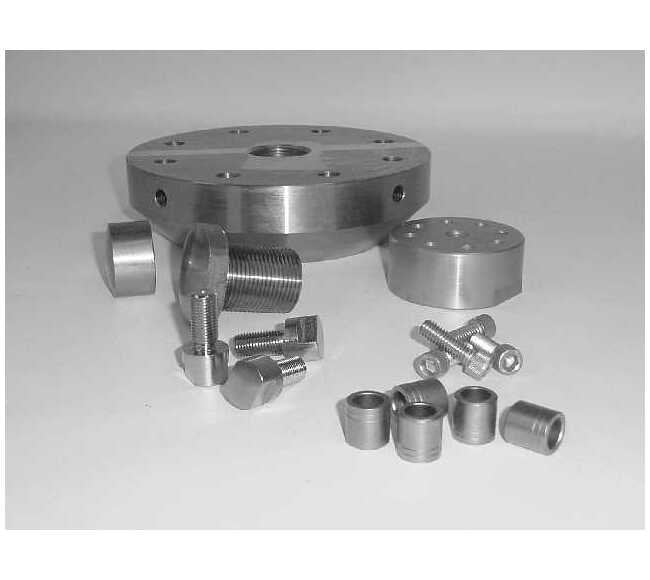

The Universal Load Cell Base Dimensions are precision-engineered to meet the demanding requirements of both consumer and institutional buyers. With a diameter of 2-5/8 inches and a height range from 1/4 to 1-1/4 inches, these bases offer robust support for load cells. Featuring #10-32UNF-2B and 7/16-20UNF-2B holes, along with 8 holes in total, these bases ensure secure installation and accurate measurements. Compliant with Federal/DoD procurement standards and FAR compliance factors, these bases are ideal for government and institutional procurement needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

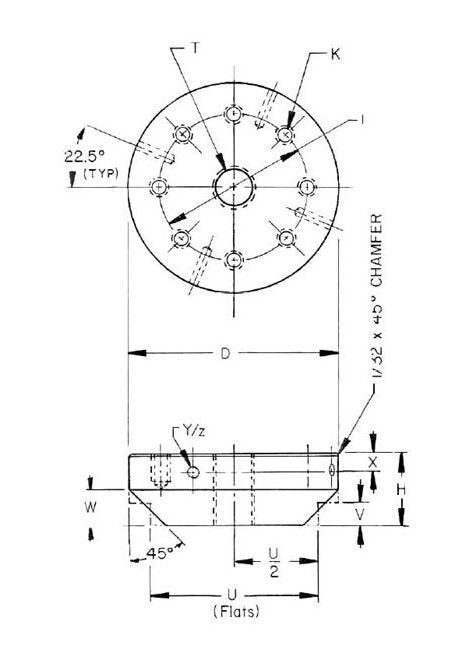

Dimensional Drawing Dimensional Drawing
Universal Load Cell Accessories
Specifications D Diameter
2-5/8 in
Specifications H Height
1-1/4 in
Specifications K Hole
#10-32UNF-2B, 9/16â Deep
Specifications L Diameter
1-15/16 in
Specifications Number Of Holes
8
Specifications T Hole
7/16-20UNF-2B
Specifications U Flats
2 in
Specifications V Height
1/4 in
Specifications W Height
0 in
Specifications X Length
0 in
Specifications Y Diameter
0 in
Specifications Z Depth
0 in
