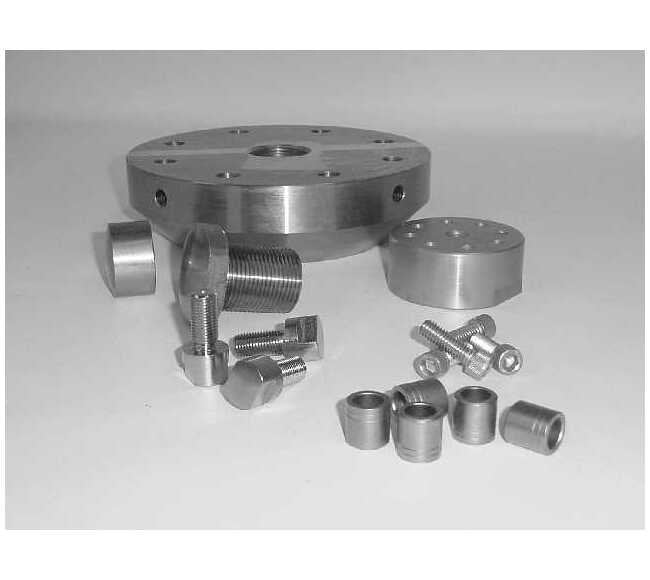

The Universal Load Cell Base Dimensions offer unparalleled adaptability and precision for load cell installations. With a diameter of 2-5/8 inches, flats of 2 inches, and a height of 1-1/4 inches, these bases ensure robust support. Featuring 8 holes and specific hole dimensions, including 3/8-16UNC-2B and #10-32UNF-2B, these bases are engineered for seamless integration. Compliant with federal procurement standards, GSA requirements, and industry certifications, these bases are ideal for government and institutional procurements.
Product Specifications

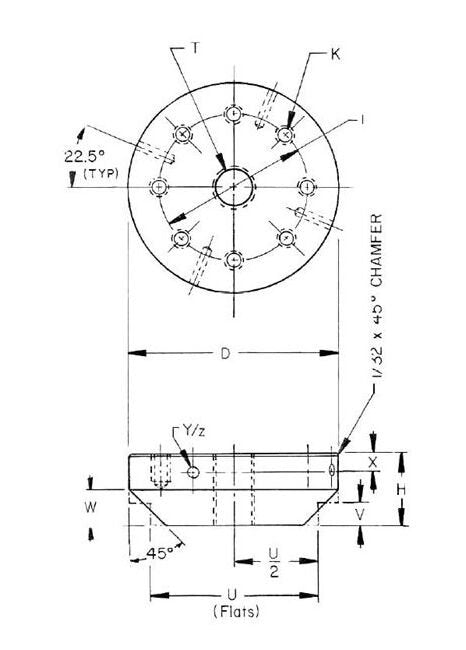

Dimensional Drawing Dimensional Drawing
Universal Load Cell Accessories
Specifications D Diameter
2-5/8 in
Specifications H Height
1-1/4 in
Specifications K Hole
#10-32UNF-2B, 9/16â Deep
Specifications L Diameter
1-15/16 in
Specifications Number Of Holes
8
Specifications T Hole
3/8-16UNC-2B
Specifications U Flats
2 in
Specifications V Height
1/4 in
Specifications W Height
0 in
Specifications X Length
0 in
Specifications Y Diameter
0 in
Specifications Z Depth
0 in
