The Universal Load Cell Base Dimensions are expertly crafted for precise measurements and reliable performance. With a diameter of 5-1/8 inches, flats measuring 4-1/2 inches, and a sturdy height of 1-3/4 inches, this base provides exceptional stability and accuracy. It features 8 strategically placed holes for secure mounting and a 3/8-24UNF-2B, 7/8” deep hole that meets rigorous standards. Ideal for both consumer and institutional use, this load cell base ensures compatibility and durability in various applications.
Product Specifications

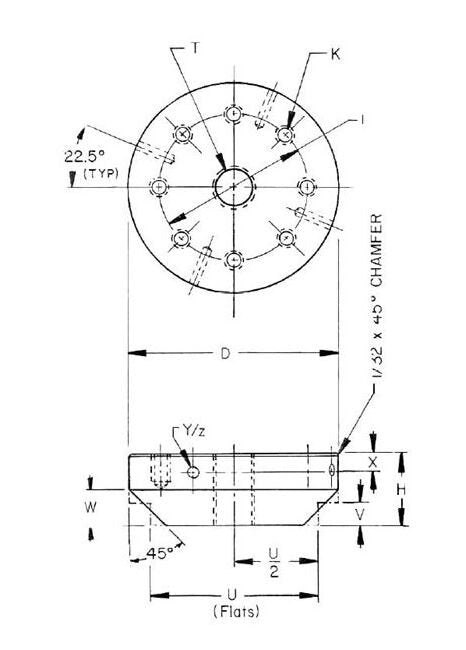

Dimensional Drawing Dimensional Drawing

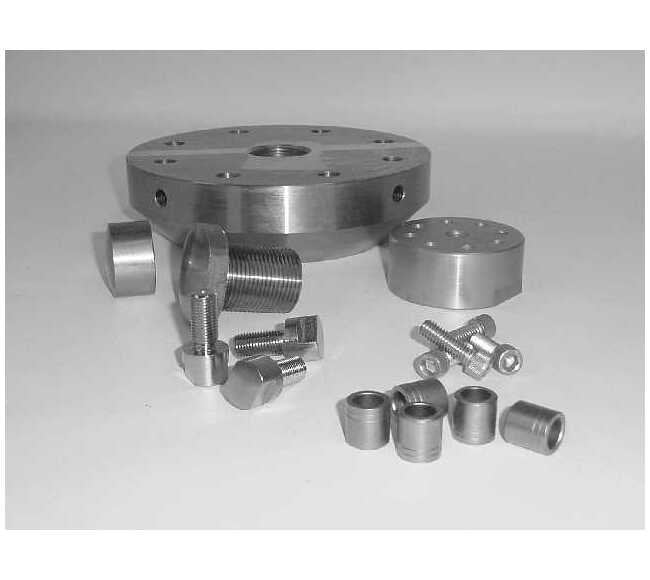

Universal Load Cell Accessories
Specifications D Diameter
5-1/8 in
Specifications H Height
1-3/4 in
Specifications K Hole
3/8-24UNF-2B, 7/8â Deep
Specifications L Diameter
3-3/4 in
Specifications Number Of Holes
8
Specifications T Hole
1-14UNF-2B
Specifications U Flats
4-1/2 in
Specifications V Height
1/2 in
Specifications W Height
0 in
Specifications X Length
0 in
Specifications Y Diameter
0 in
Specifications Z Depth
0 in
