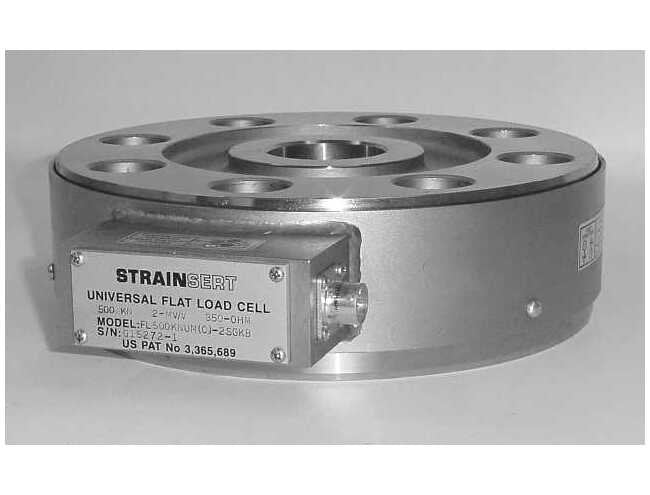

Universal Load Cell FL100UM(C)-2SGKB
Universal Load Cell FL100UM(C)-2SGKB
SKU:LOA-0300bc
Precise force measurement in tension/compression, low profile, rugged design, high sensitivity, ideal for industrial use.
Regular price
$279.99
Regular price
Sale price
$279.99
Unit price
per
Initiate Order
Universal Load Cell FL100UM(C)-2SGKB
$279.99
Quantity: 1
Claim Your Seller Account
Universal Load Cell FL100UM(C)-2SGKB
$279.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Universal Load Cell FL100UM(C)-2SGKB is a versatile solution for precise force measurement in tension and compression. Featuring a low profile, rugged construction, and high sensitivity, it offers accurate readings across a wide range of forces from ±1.1 to ±1,780 KN. Designed with pressure compensating sealed strain gages and counterbored mounting holes, this load cell provides high static overload protection and low sensitivity to extraneous loads. Its compact and lightweight design, along with high frequency dynamic load sensing, makes it ideal for industrial and institutional applications.
Product Specifications
Dimensional Drawing Dimensional Drawing
Metric Universal Load Cell
Electrical Specifications Cable
#20(26x34) AWG., rubber insulation, shielded, rubber jacket, 4-Conductor (Standard Cable)
Electrical Specifications Excitation
Red
Electrical Specifications Function
Wire Code
Electrical Specifications Mating Plug
PT06A-10-6S (SR)
Electrical Specifications Signal
Green
Features 0
Low Profile, Rugged, Compact & Lightweight Low Deflection High Frequency Dynamic Load Sensing Pressure Compensating Sealed Strain Gages Counterbored Mounting Holes Low Sensitivity to Extraneous Loads High Static Overload
General Information 0
Load Cells are strain gage transducers developed by Strainsert (U.S. Patent No. 3,695,096). They are manufacured utilizing the internal strain gage process perfected by Strainsert since 1960. The structure is simple and compact, consisting of an inner loading hub and an outer supporting flange bridged smoothly by a uniformly continuous solid shear web avoiding structural stress risers.Strain gages are installed and sealed inside small gage holes along the neutral axis of the web. Linearity and symmetry of output signal in tension and compression are obtained by equal straining of all shear gages in the bridge circuit.Low deflection and high natural frequency are obtained, along with high resistance to extraneous forces. Mechanical and dynamic properties are fully tabulated.
Performance Specs Bridge Resistance
350 Ohms (Nominal)
Performance Specs Compensated Range
60 to 150 ºF
Performance Specs Effect On Output
±0.0030% Load/°F (Nominal)
Performance Specs Effect On Zero
±0.0035% FS/°F
Performance Specs Excitation Voltage
15V AC or DC (Maximum)
Performance Specs Hysteresis
General Purpose ±0.20% FS | Precision ±0.15% FS
Performance Specs Insulation Resistance
10,000 Megaohms (Minimum)
Performance Specs Non Linearity
General Purpose ±0.25% FS | Precision ±0.15% FS
Performance Specs Non Repeatability
±0.05% FS
Performance Specs Safe Static Overload Without Output Shift
200%FS
Performance Specs Safe Static Overload Without Structural Failur
250%FS
Performance Specs Safe Static Overload Without Zero Shift
200%FS
Specifications A Diameter
17.5 mm
Specifications B Diameter
36.5 mm
Specifications C Diameter
63.5 mm
Specifications D Diameter
66.7 mm
Specifications F Height
23.8 mm
Specifications G Width
71.4 mm
Specifications H Height
25.4 mm
Specifications K Inside Diameter
5.56 mm
Specifications K Outside Diameter
8.73 mm
Specifications Lifting Holes Bc Diameter
NONE
Specifications Load Capacity
250 lb | 1.1 kN
Specifications L Diameter
49.2 mm
Specifications Material Of Construction
Aluminum Alloy
Specifications N Depth Of Hole
7.9 mm
