Highly accurate Universal Load Cells for precise tension and compression force measurement in industrial applications.
Regular price
$849.99
Regular price
Sale price
$849.99
Unit price
per
Initiate Order
Universal Load Cells for Precision Force Measurement
$849.99
Quantity: 1
Claim Your Seller Account
Universal Load Cells for Precision Force Measurement
$849.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

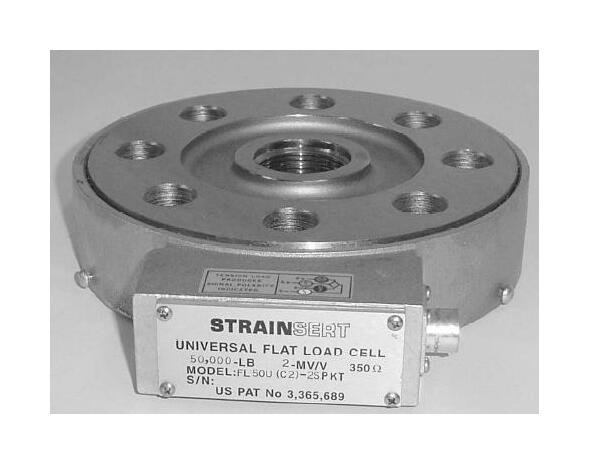

The Universal Load Cells are expertly engineered to measure forces in tension and compression, with a wide measurement range from ±250 to ±2.0 million lbs. Featuring a low profile, rugged design with pressure-compensating sealed strain gages, they offer high accuracy and reliability. With calibration data up to 500,000 lbs, these load cells ensure precision performance for various applications. Designed for high static overload and low sensitivity to extraneous loads, these load cells are ideal for demanding industrial environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensional Drawing Dimensional Drawing
Universal Flat Load Cells
Electrical Specifications Cable
#20(26x34) AWG., rubber insulation, shielded, rubber jacket, 4-Conductor (Standard Cable)
Electrical Specifications Excitation
Red
Electrical Specifications Function
Wire Code
Electrical Specifications Mating Plug
PT06A-10-6S (SR)
Electrical Specifications Receptacle
PT02H-10-6P
Electrical Specifications Signal
Green
Features 0
Low Profile, Rugged, Compact & Lightweight Low Deflection High Frequency Dynamic Load Sensing Pressure Compensating Sealed Strain Gages Counterbored Mounting Holes Low Sensitivity to Extraneous Loads High Static Overload
General Information 0
Load Cells are strain gage transducers developed by Strainsert (U.S. Patent No. 3,695,096). They are manufacured utilizing the internal strain gage process perfected by Strainsert since 1960. The structure is simple and compact, consisting of an inner loading hub and an outer supporting flange bridged smoothly by a uniformly continuous solid shear web avoiding structural stress risers.Strain gages are installed and sealed inside small gage holes along the neutral axis of the web. Linearity and symmetry of output signal is obtained by equal straining of all shear gages in the bridge circuit.Low deflection and high natural frequency are obtained, along with high resistance to extraneous forces. Mechanical and dynamic properties are fully tabulated.
Mechanical Properties 0
FL150U_MP
Performance Specs Bridge Resistance
350 Ohms (Nominal)
Performance Specs Compensated Range
60 to 150 ºF
Performance Specs Effect On Output
±0.0030% Load/°F (Nominal)
Performance Specs Effect On Zero
±0.0035% FS/°F
Performance Specs Excitation Voltage
15V AC or DC (Maximum)
Performance Specs Hysteresis
General Purpose ±0.15% FS | Precision ±0.10% FS
Performance Specs Insulation Resistance
10,000 Megaohms (Minimum)
Performance Specs Non Linearity
General Purpose ±0.25% FS | Precision ±0.10% FS
Performance Specs Non Repeatability
±0.05% FS
Performance Specs Safe Static Overload Without Output Shift
200%FS
Performance Specs Safe Static Overload Without Structural Failur
250%FS
Specifications A Diameter
4-3/8 in
Specifications B Diameter
7 in
Specifications C Diameter
10-3/4 in
Specifications D Diameter
11-1/8 in
Specifications F Height
1-1/2 in
Specifications G Width
3-3/4 in
Specifications H Height
3-1/2 in
Specifications K Inside Diameter
13/16 in
Specifications K Outside Diameter
1-3/16 in
Specifications Lifting Holes Bc Diameter
3-1/8
Specifications Load Capacity
150,000 lb
Specifications L Diameter
8-3/4 in
Specifications N Depth Of Hole
1-1/8 in
